13636661571

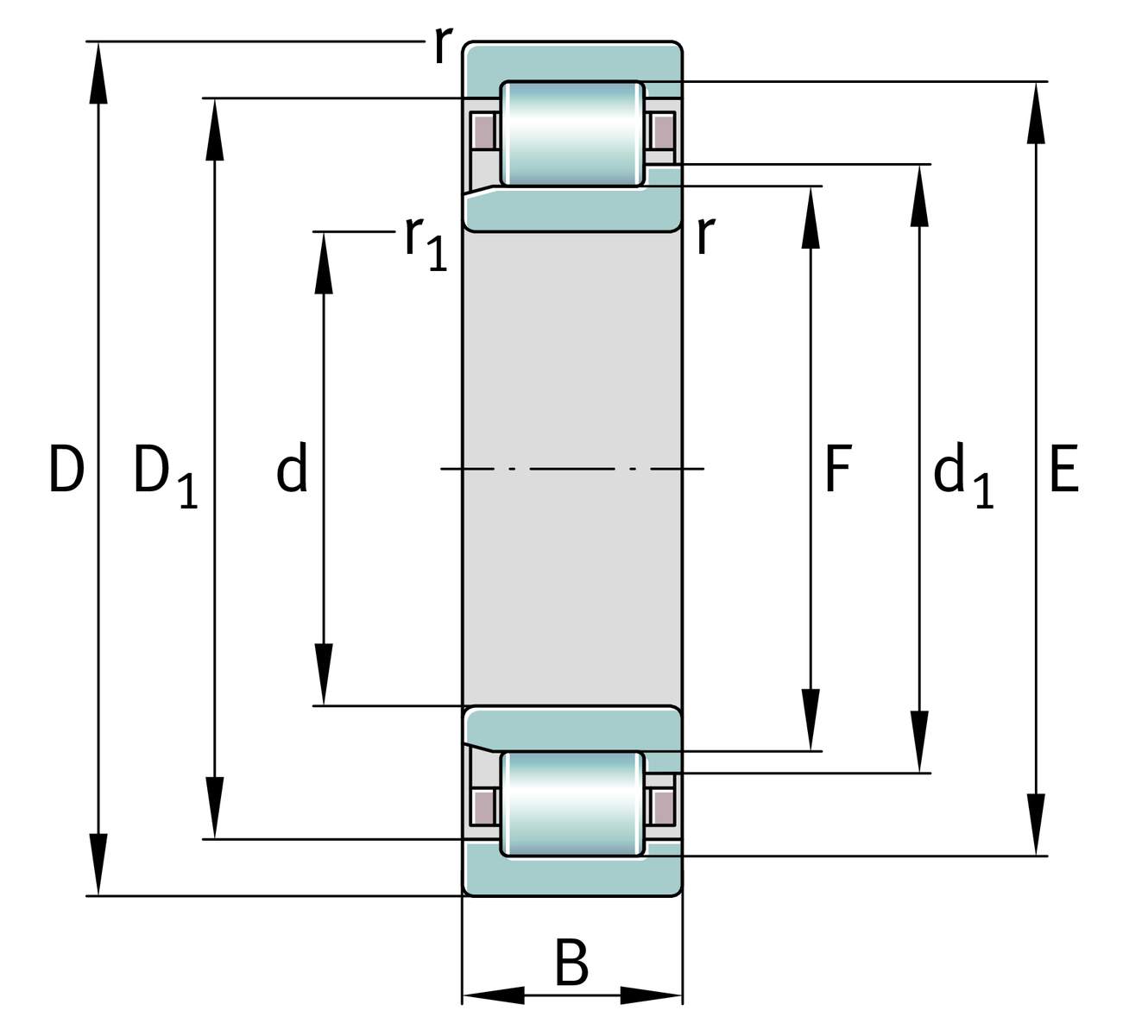

d |
17 mm |
D |
40 mm |
B |
12 mm |
Cr |
20800 N |
Cor |
14600 N |
Cur |
2220 N |
Reference speed |
15300 rpm |
Limiting speed |
26500 rpm |
damin |
21 | Minimum diameter of shaft shoulder |
rmin |
0.6 | Minimum chamfer size |
damax |
21.5 | Maximum diameter of shaft shoulder |
r1min |
0.3 | Minimum chamfer size |
s |
1.2 | Axial displacement |
Damax |
36 | Maximum diameter of bearing block shoulder |
E |
35.1 | Outer race diameter |
F |
22.1 | Inner race diameter |
D1min |
32.5 | Minimum shoulder diameter of outer ring |
dcmin |
28 | Minimum shaft shoulder |
d1 |
24.7 | Maximum flange diameter of inner ring |
ramax |
0.6 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
120 °C | Maximum operating temperature |
