13636661571

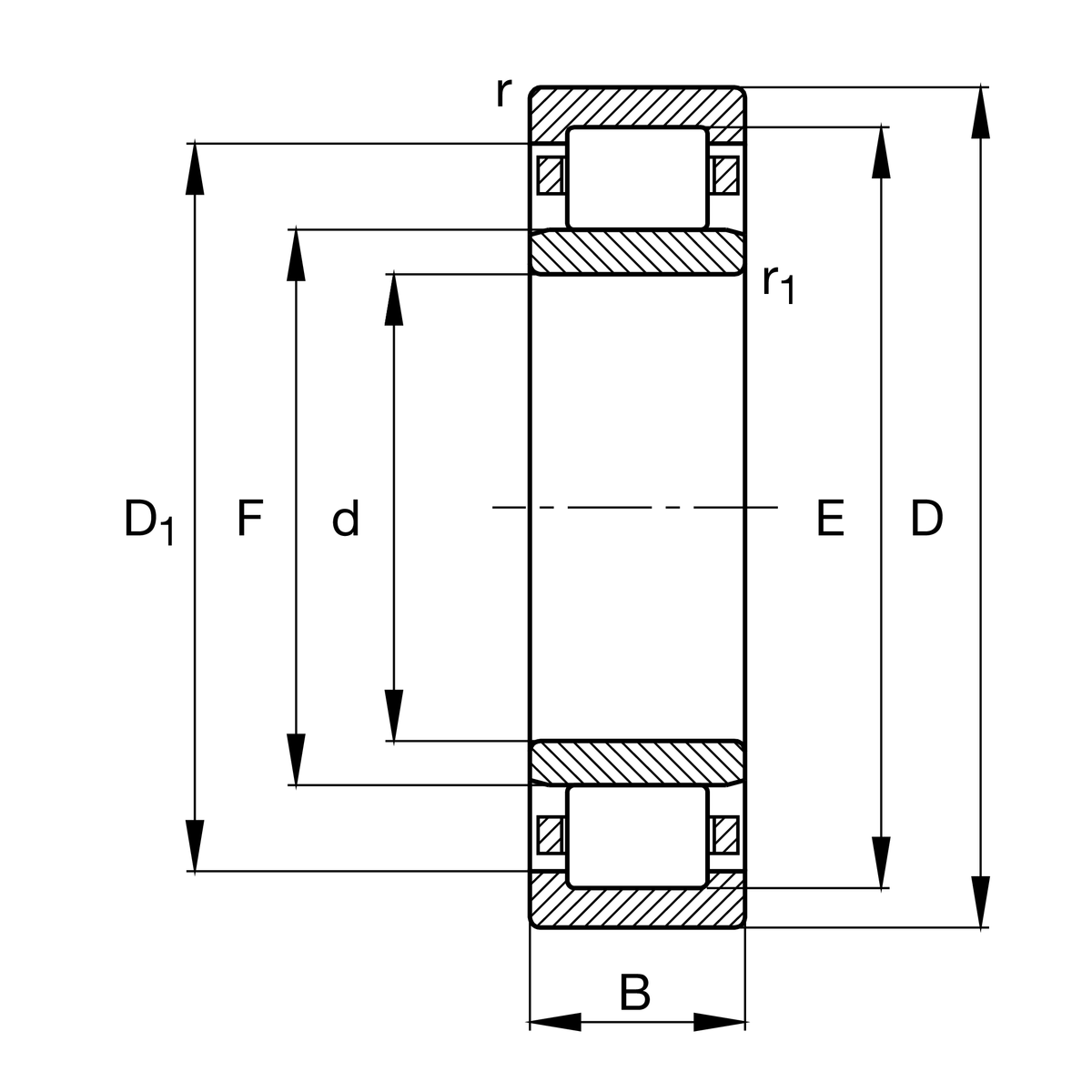

d |
15 mm |
D |
35 mm |
B |
11 mm |
Cr |
15100 N |
Cor |
10400 N |
Cur |
1440 N |
Reference speed |
17900 rpm |
Limiting speed |
31000 rpm |
damin |
17.4 | Minimum diameter of shaft shoulder |
rmin |
0.6 | Minimum chamfer size |
damax |
18.5 | Maximum diameter of shaft shoulder |
r1min |
0.3 | Minimum chamfer size |

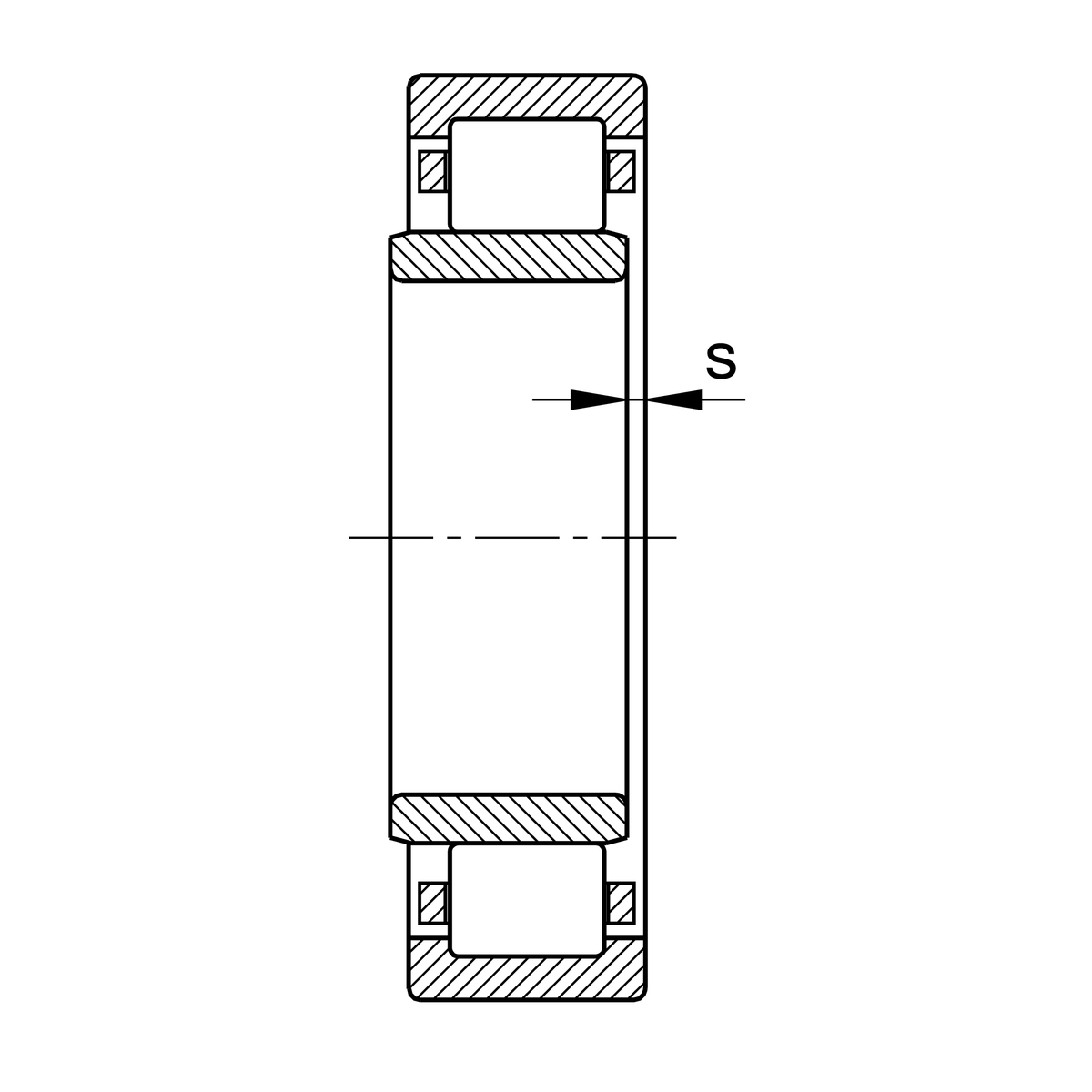

s |
1.6 | Axial displacement |
dbmin |
20 | Minimum shaft shoulder |
Damax |
32.6 | Maximum diameter of bearing block shoulder |
E |
30.3 | Outer race diameter |
F |
19.3 | Inner race diameter |
D1min |
28 | Minimum shoulder diameter of outer ring |
ramax |
0.6 | Maximum cavity radius |
ra1max |
0.3 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
120 °C | Maximum operating temperature |
