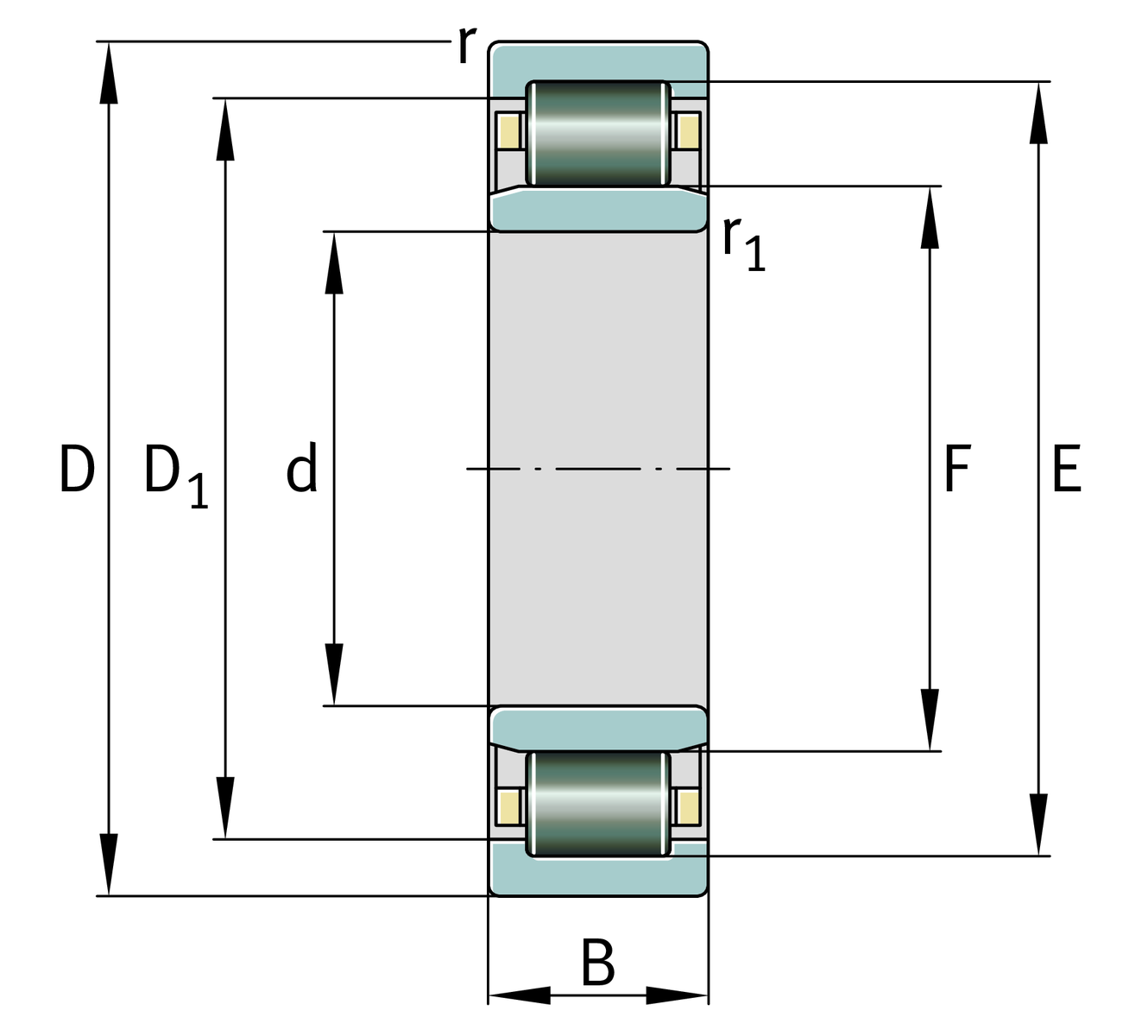

d |
170 mm |
D |
360 mm |
B |
72 mm |
Cr |
960000 N |
Cor |
1210000 N |
Cur |
96000 N |
Reference speed |
1610 rpm |
Limiting speed |
2800 rpm |
damin |
187 | Minimum diameter of shaft shoulder |
rmin |
4 | Minimum chamfer size |
damax |
215 | Maximum diameter of shaft shoulder |
r1min |
4 | Minimum chamfer size |
s |
6 | Axial displacement |
dbmin |
221 | Minimum shaft shoulder |
Damax |
343 | Maximum diameter of bearing block shoulder |
E |
318 | Outer race diameter |
F |
218 | Inner race diameter |
D1min |
298 | Minimum shoulder diameter of outer ring |
ramax |
3 | Maximum cavity radius |
ra1max |
3 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
150 °C | Maximum operating temperature |
