13636661571
d |
55 mm |
D |
90 mm |
B |
18 mm |
Cr |
49500 N |
Cor |
50000 N |
Cur |
6800 N |
Reference speed |
6900 rpm |
Limiting speed |
15600 rpm |

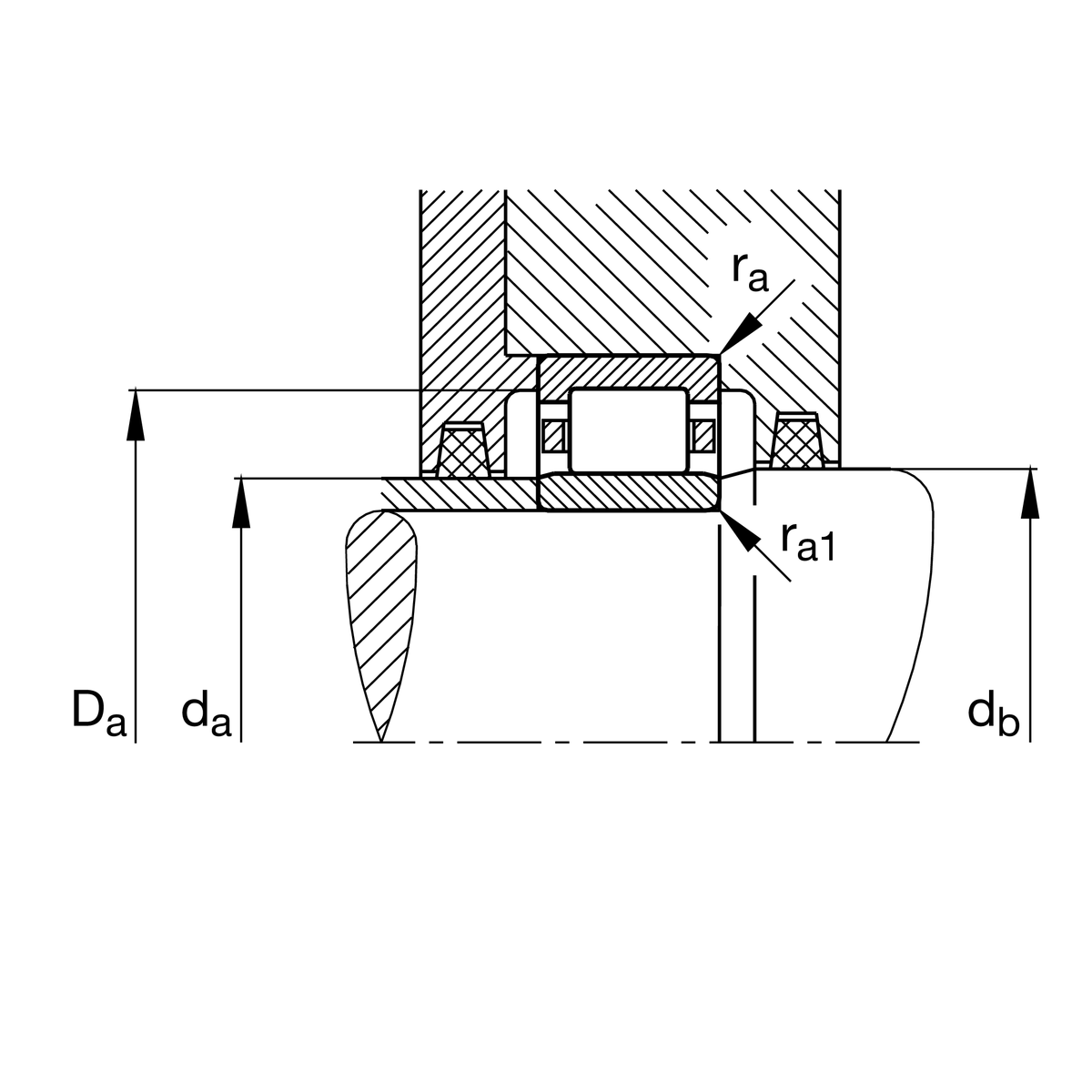

damin |
60 | Minimum diameter of shaft shoulder |
rmin |
1.1 | Minimum chamfer size |
damax |
63 | Maximum diameter of shaft shoulder |
r1min |
1 | Minimum chamfer size |
s |
2.4 | Axial displacement |
dbmin |
66 | Minimum shaft shoulder |
Damax |
84 | Maximum diameter of bearing block shoulder |
E |
80.5 | Outer race diameter |
F |
64.5 | Inner race diameter |
D1min |
77.3 | Minimum shoulder diameter of outer ring |
ramax |
1.1 | Maximum cavity radius |
ra1max |
1 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
150 °C | Maximum operating temperature |
