13636661571

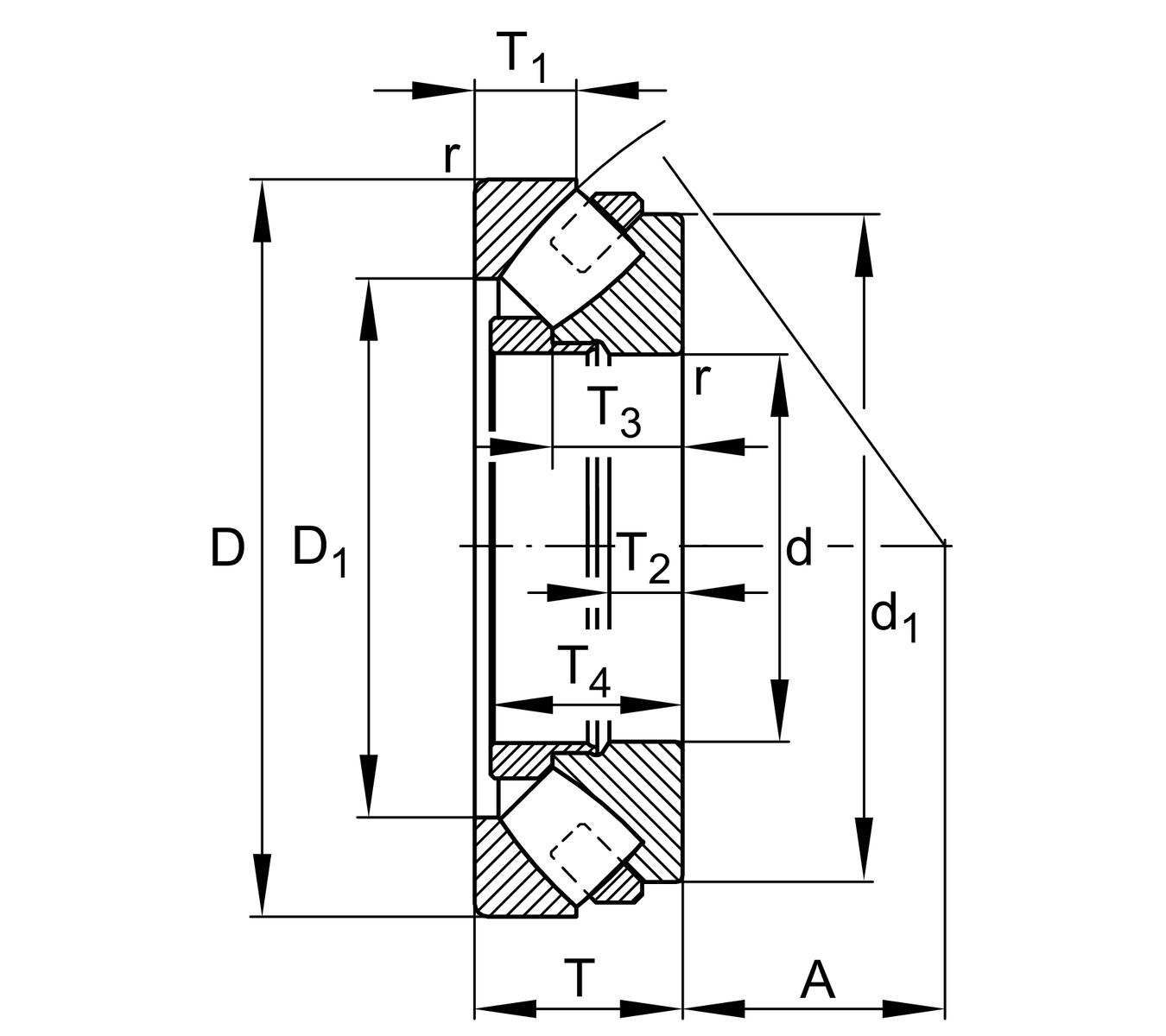

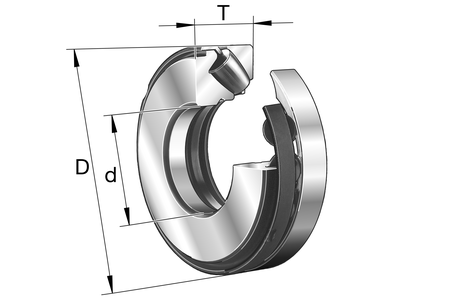

d |
850 mm |
D |
1250 mm |
B |
243 mm |
Ca |
12900000 N |
Coa |
62000000 N |
Cua |
N |
Reference speed |
218 rpm |
Limiting speed |
455 rpm |
D1 |
1,021 mm | Inner diameter of seat ring |

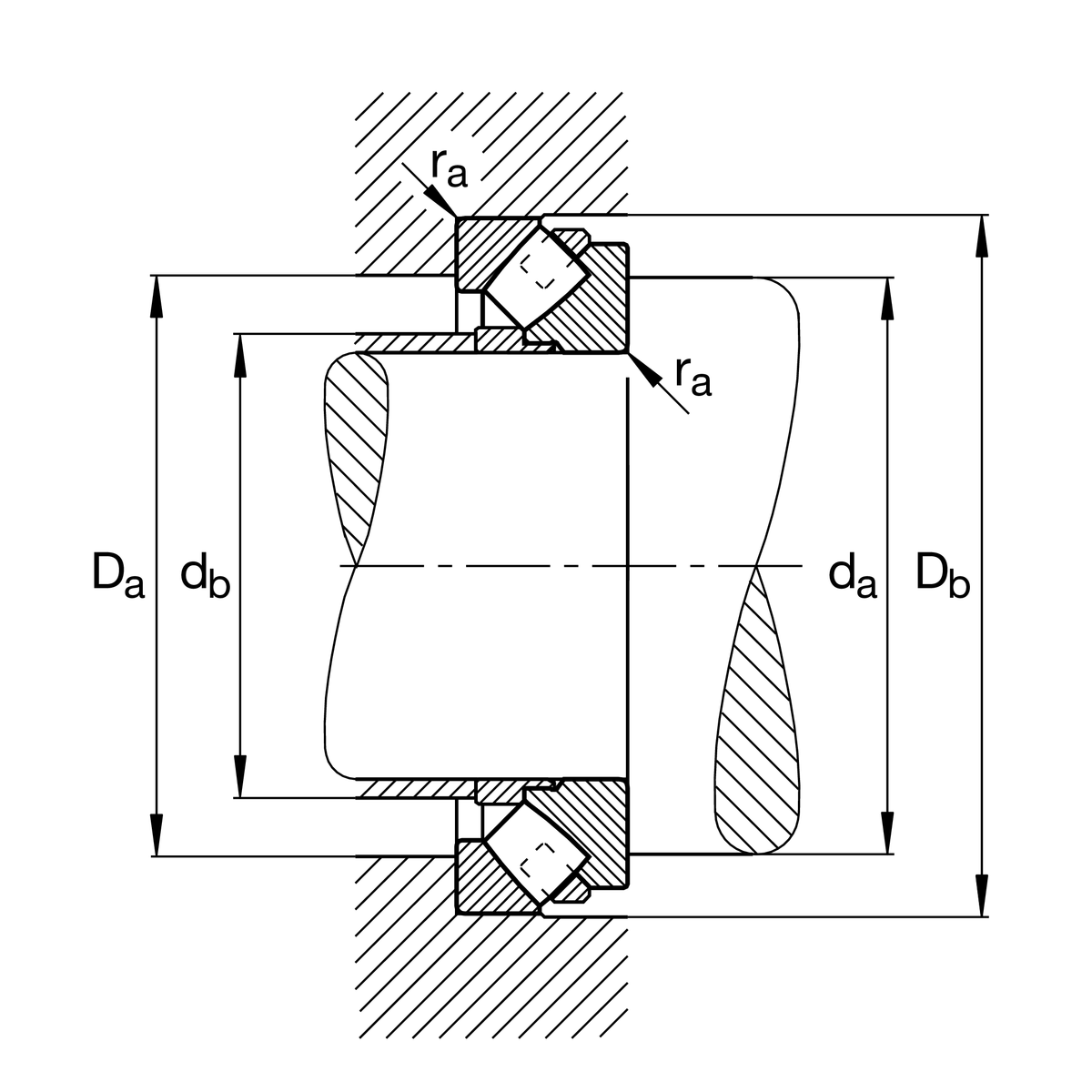

da min |
1,045 mm | Shaft shoulder minimum diameter |
Da max |
1,137 mm | Maximum diameter of housing shoulder |
d1 |
1,165 mm | Shaft ring split diameter |
Db min |
1,273 mm | Minimum bore diameter of housing |
r min |
12 mm | Minimum chamfer size |
T1 |
118 mm | Housing Washer Height |
db max |
896 mm | The maximum distance of the bushingThe maximum distance of the bushing |
T2 |
87 mm | Shaft ring height |
T3 |
152 mm | Shaft ring height |
ra max |
10 mm | Maximum pocket radius |
T4 |
235 mm | Shaft washer (including lip ring) height |
A |
468 mm | Center point distance |
T min |
-30 °C | Minimum operating temperature |
T max |
200 °C | Maximum operating temperature |
