13636661571
d |
260 mm |
D |
480 mm |
B |
132 mm |
Ca |
4400000 N |
Coa |
13200000 N |
Cua |
N |
Reference speed |
660 rpm |
Limiting speed |
1350 rpm |
D1 |
346 mm | Inner diameter of seat ring |

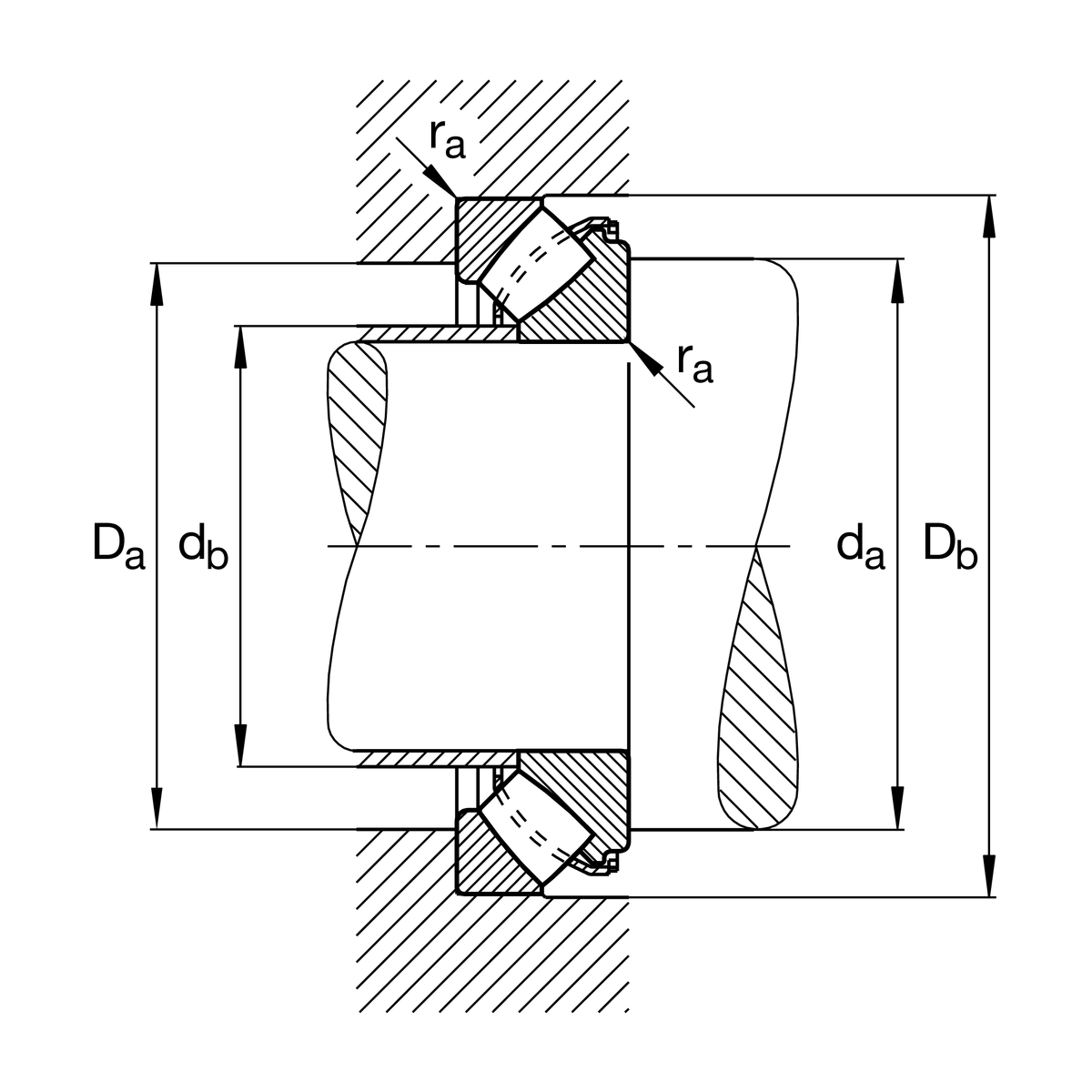

da min |
365 mm | Shaft shoulder minimum diameter |
Da max |
419 mm | Maximum diameter of housing shoulder |
d1 |
435 mm | Shaft ring split diameter |
Db min |
488 mm | Minimum bore diameter of housing |
r min |
6 mm | Minimum chamfer size |

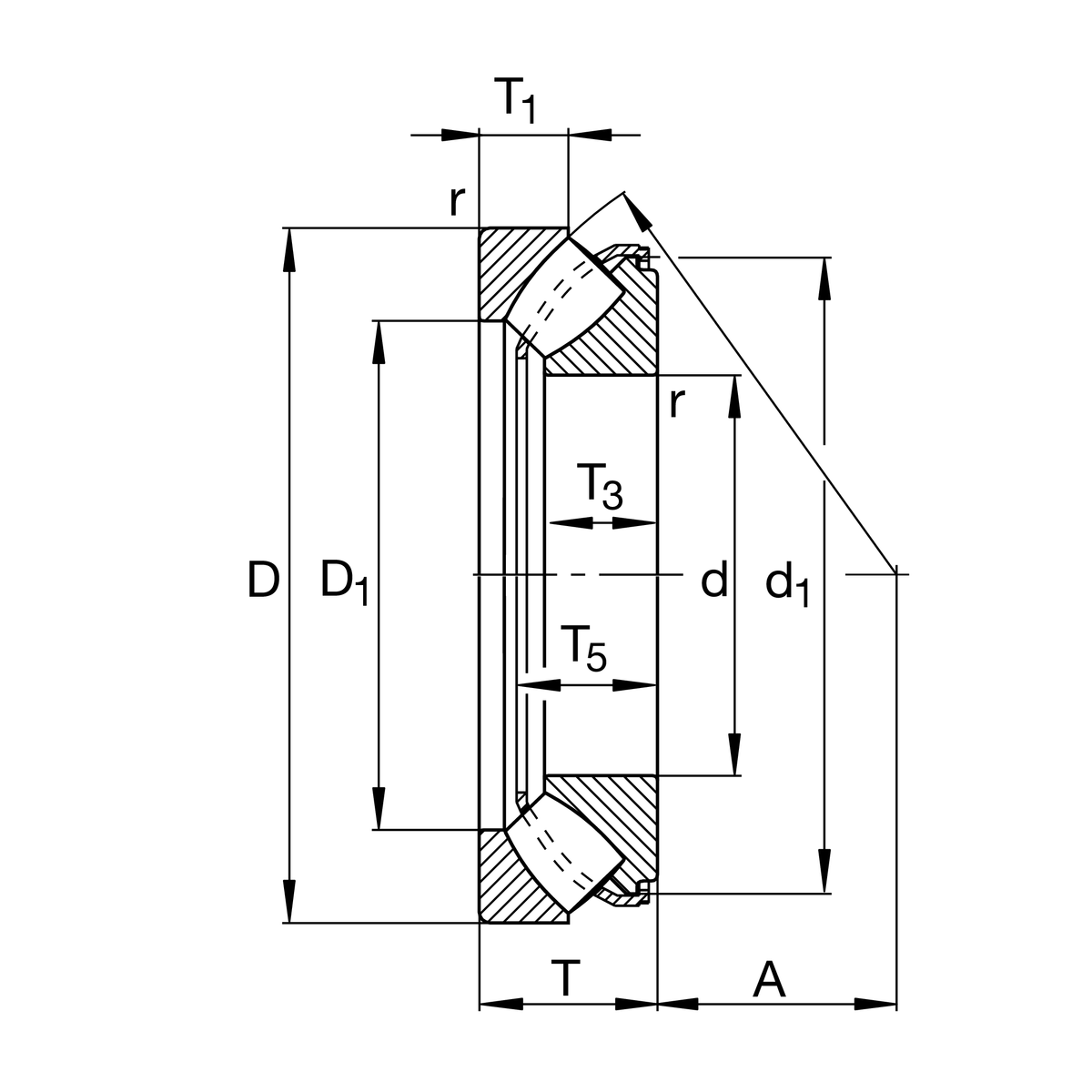

T1 |
63 mm | Housing Washer Height |
db max |
296 mm | The maximum distance of the bushing |
db1 max |
280 mm | Maximum chamfer diameter of spacer bushing |
T3 |
86 mm | Shaft ring height |
ra max |
5 mm | Maximum pocket radius |
|
|

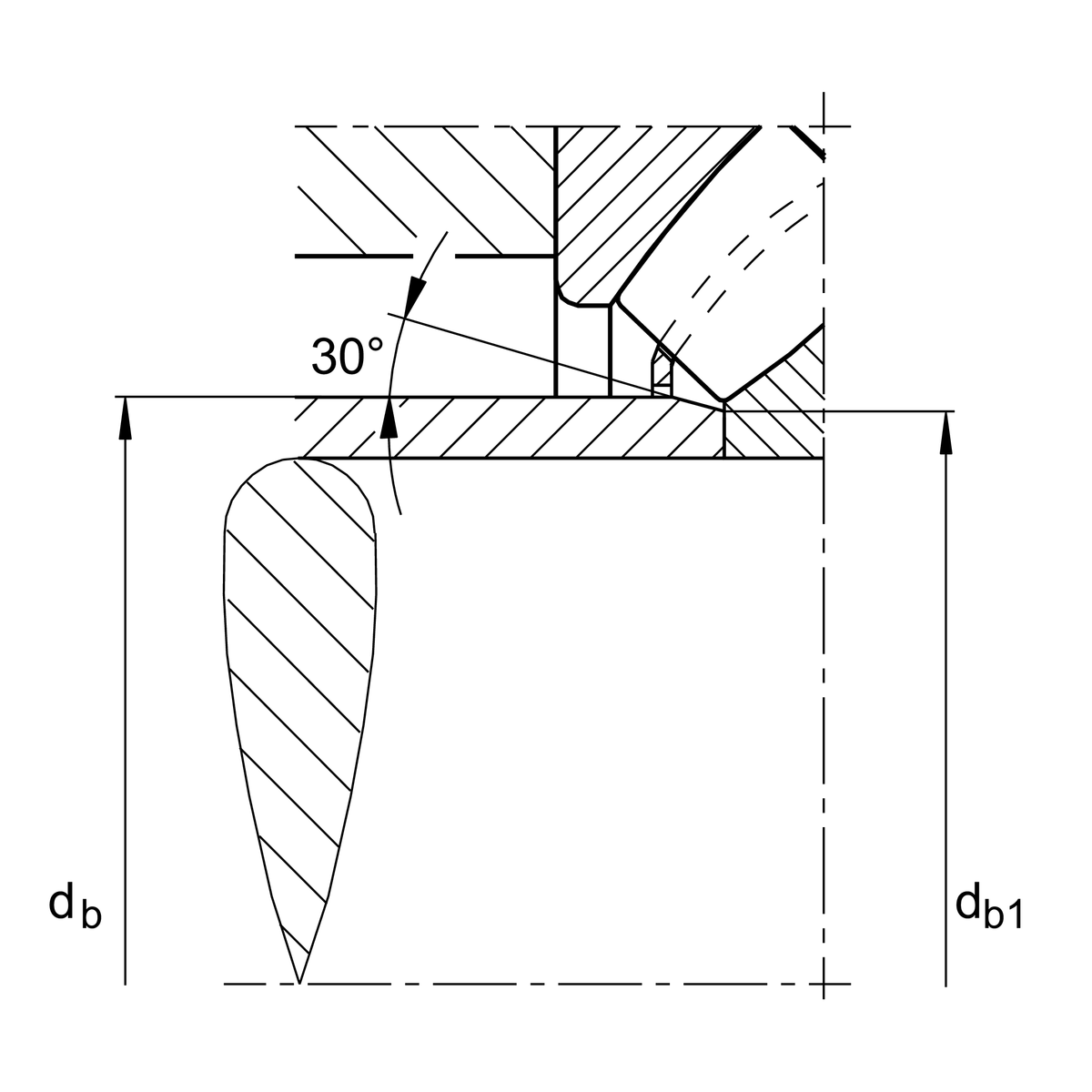

30 ° | Spacer sleeve chamfer angle |
T5 |
118.9 mm | Shaft washer - cage distance |
A |
154 mm | Center point distance |
T min |
-30 °C | Minimum operating temperature |
T max |
200 °C | Maximum operating temperature |
