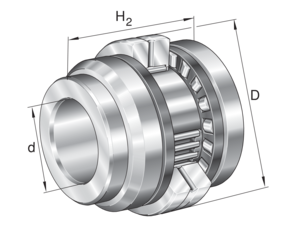

13636661571
d |
45 mm |
D |
80 mm |
B |
75 mm |
Cr |
38000 N |
Cor |
74000 N |
Cur |
10400 N |
Ca |
61000 N |
Coa |
177000 N |
Cua |
10400 N |
Reference speed |
1500 rpm |
Limiting speed |
4000 rpm |

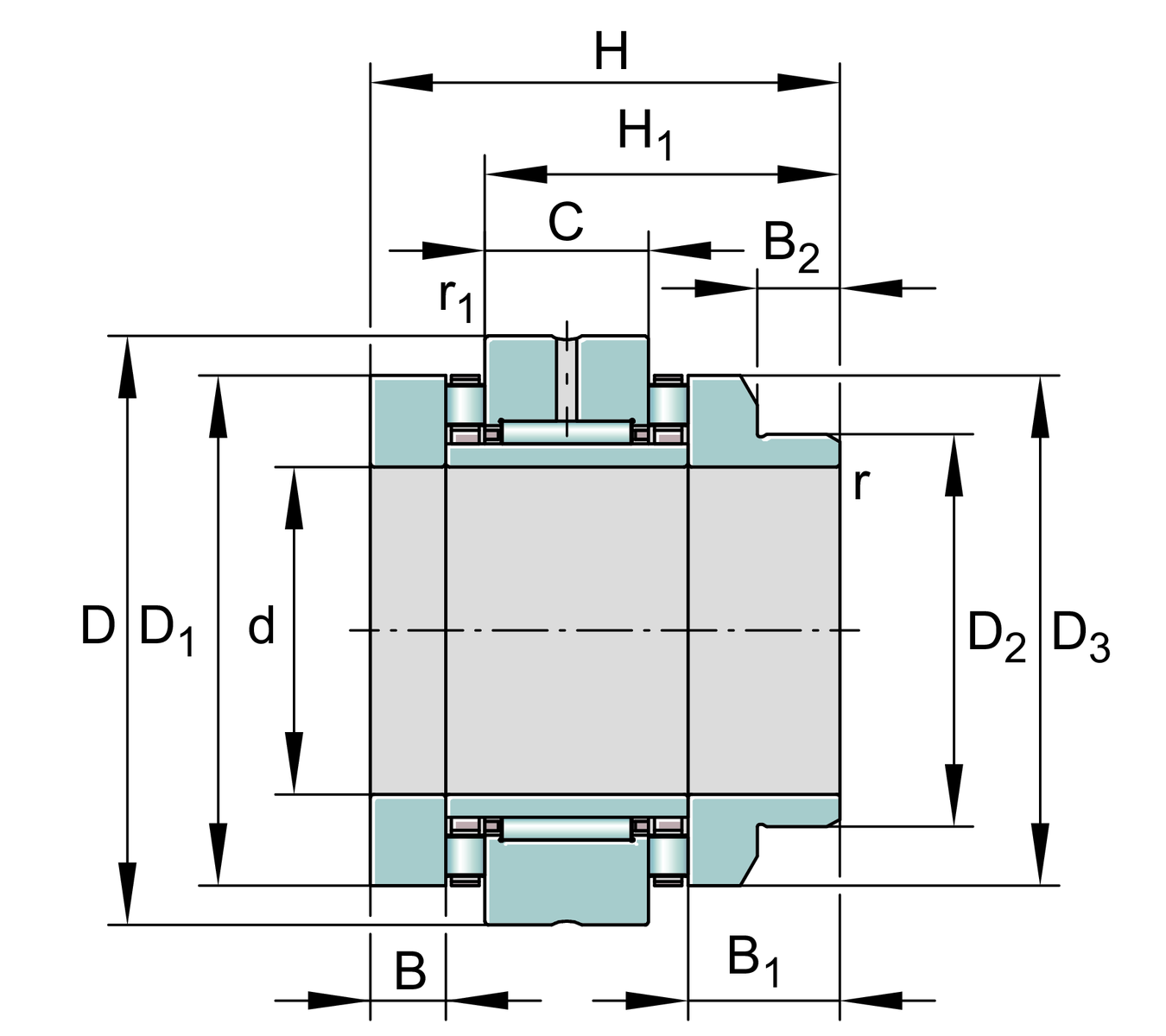

H1 |
57.5 mm | Height of outer ring above corrugated washer |
Da max |
71 mm | Maximum diameter of housing shoulder |
da min |
54 mm | Shaft shoulder minimum diameter |
C |
25 mm | outer ring width |
D1 |
70 mm | Shaft ring split diameter |
D2 |
56 mm | Long corrugated washer with diameter |
D3 |
68 mm | Long Corrugated Washer Diameter |
B |
11.5 mm | Inner ring width |
B1 |
26.5 mm | Long Wave Washer Width |
B2 |
13 mm | Long Wave Washer Width |
r min |
0.3 mm | Minimum chamfer size |
r1 min |
0.6 mm | Minimum chamfer size |
T min |
-30 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
