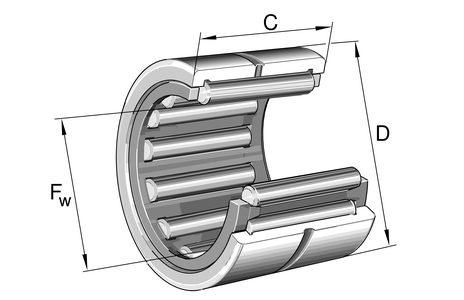

RNA4864-XL_Radial Roller Bearing

Main Dimensions & Performance Data

Fw

350 mm

D

400 mm

B

80 mm

Cr

710000 N

Cor

1850000 N

Cur

246000 N

Reference speed

680 rpm

Limiting speed

1340 rpm

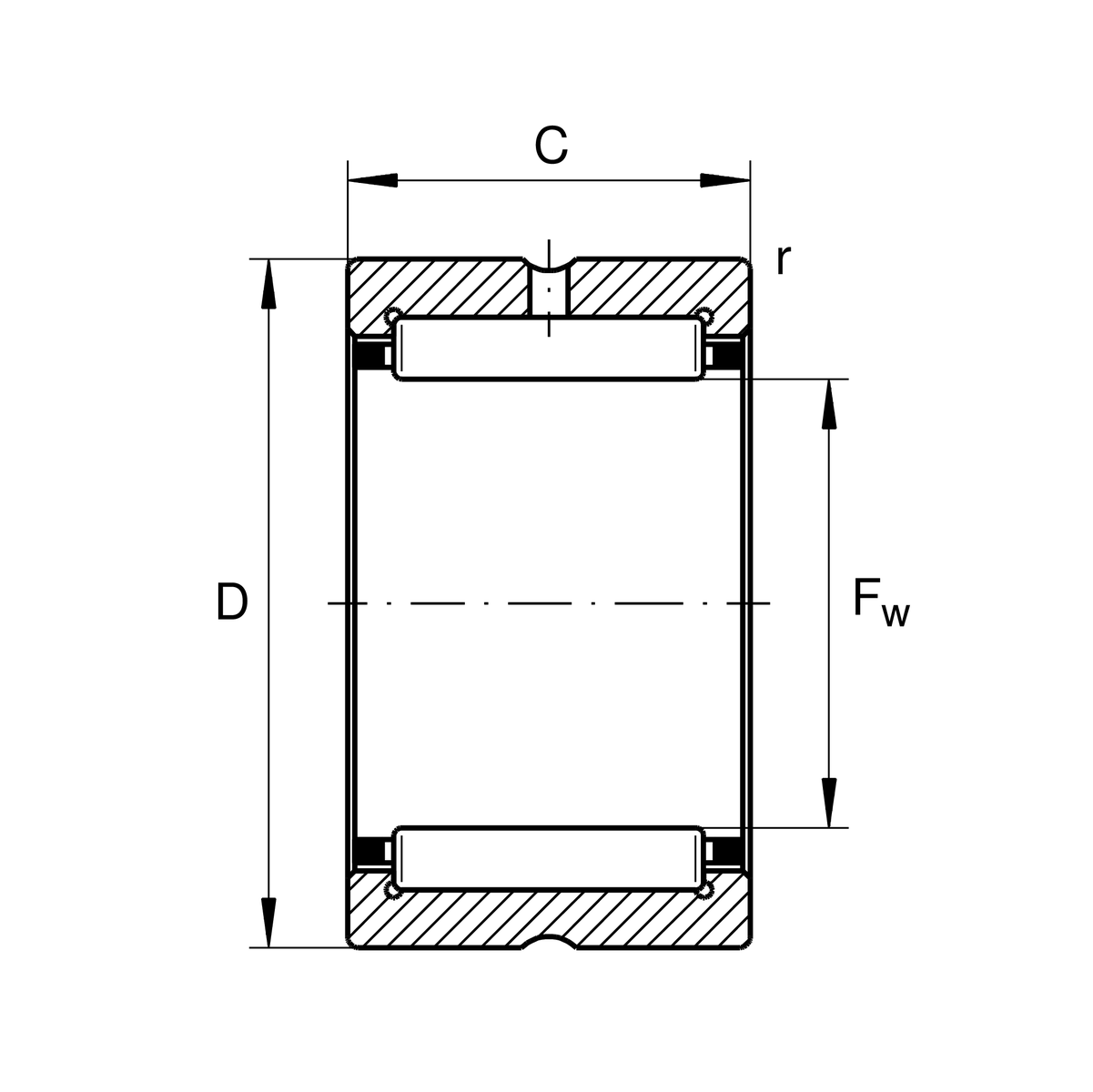

Mounting dimensions

rmin

2.1 mm Minimum chamfer size

C

80 mm Outer ring width

Temperature range

Tmin

-30 °C Minimum operating temperature

Tmax

120 °C Maximum operating temperature
