13636661571

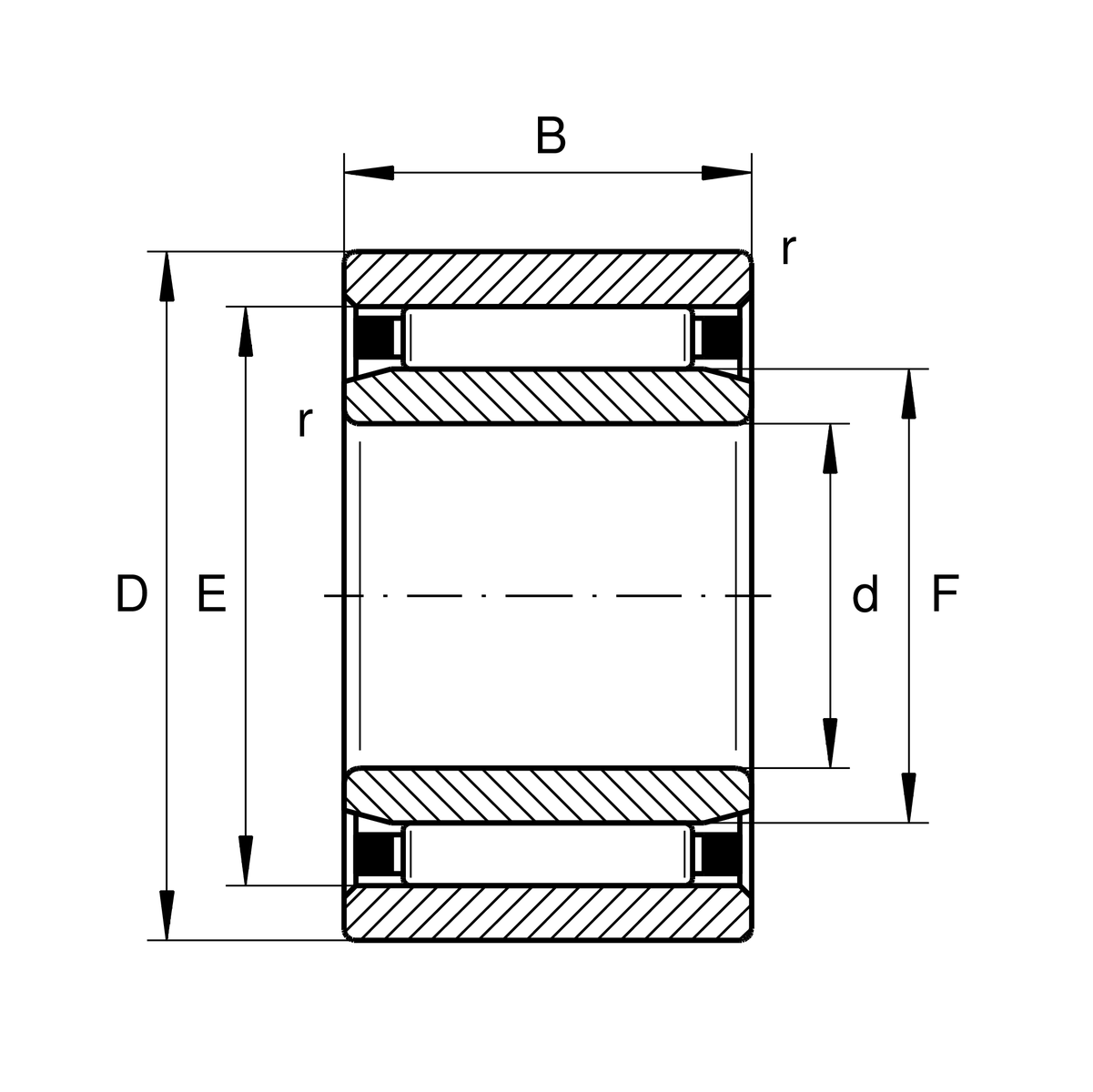

d |
9 mm |
D |
22 mm |
B |
12 mm |
Cr |
11300 N |
Cor |
9900 N |
Cur |
1770 N |
Reference speed |
17900 rpm |
Limiting speed |
26000 rpm |

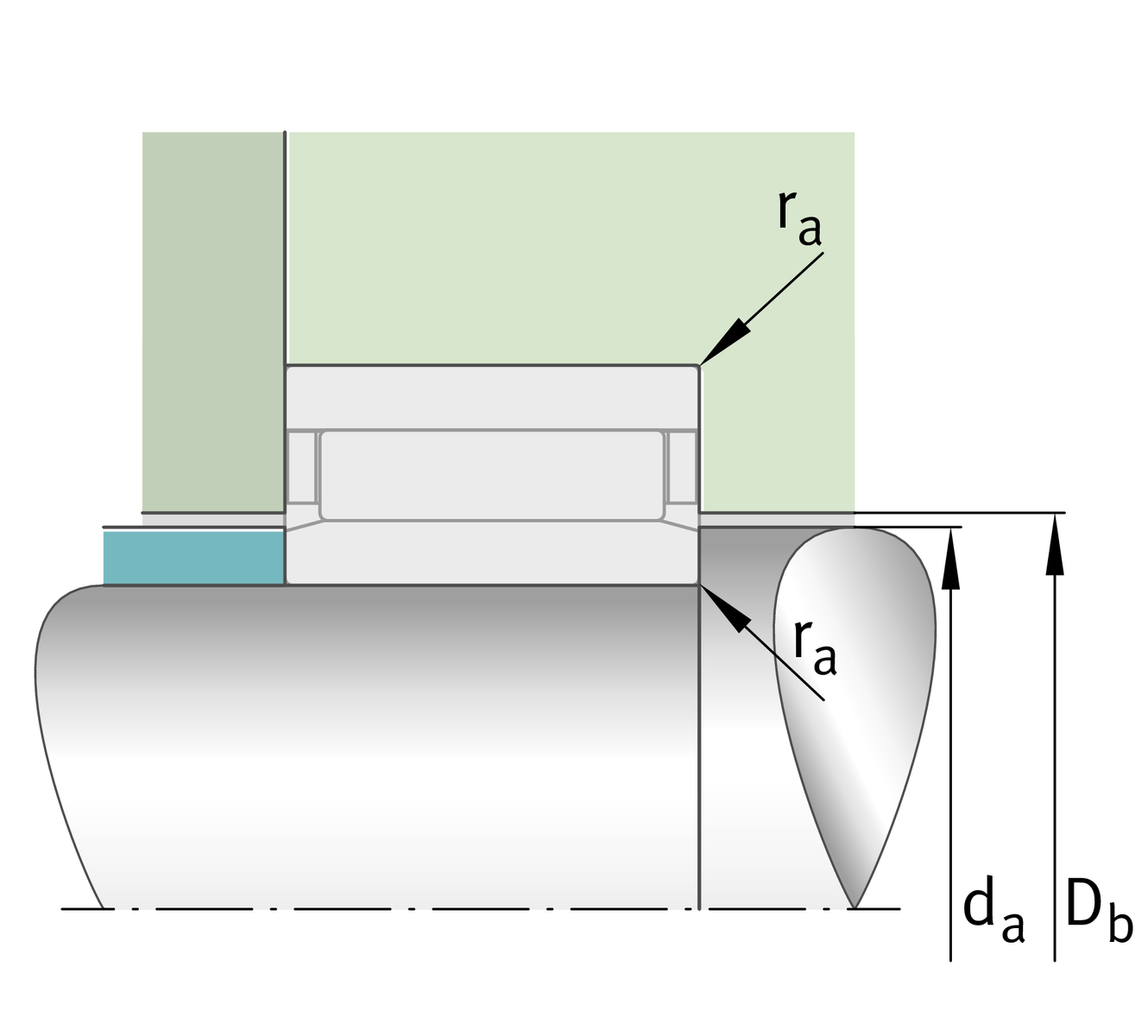

ramax |
0.3 mm | Maximum cavity radius |
rmin |
0.3 mm | Minimum chamfer size |
da |
11.7 mm | 安装尺寸 |
E |
18 mm | Outer race diameter |
F |
12 mm | Inner race diameter |
db |
17.6 mm | Axial guide NK / shaft shoulder diameter |
Da |
18.3 mm | Diameter of outer ring shoulder |
Db |
12.3 mm | Axial guide NK / bearing pedestal shoulder diameter |
s |
0.5 mm | Axial displacement |
Tmin |
-20 °C | Minimum operating temperature |
Tmax |
120 °C | Maximum operating temperature |
