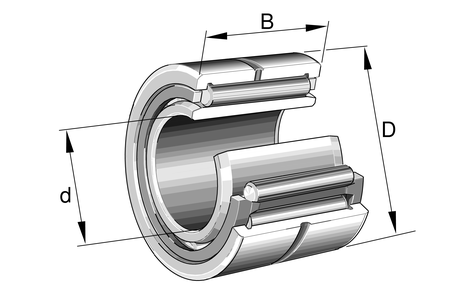

NKIS55-XL_Radial Roller Bearing

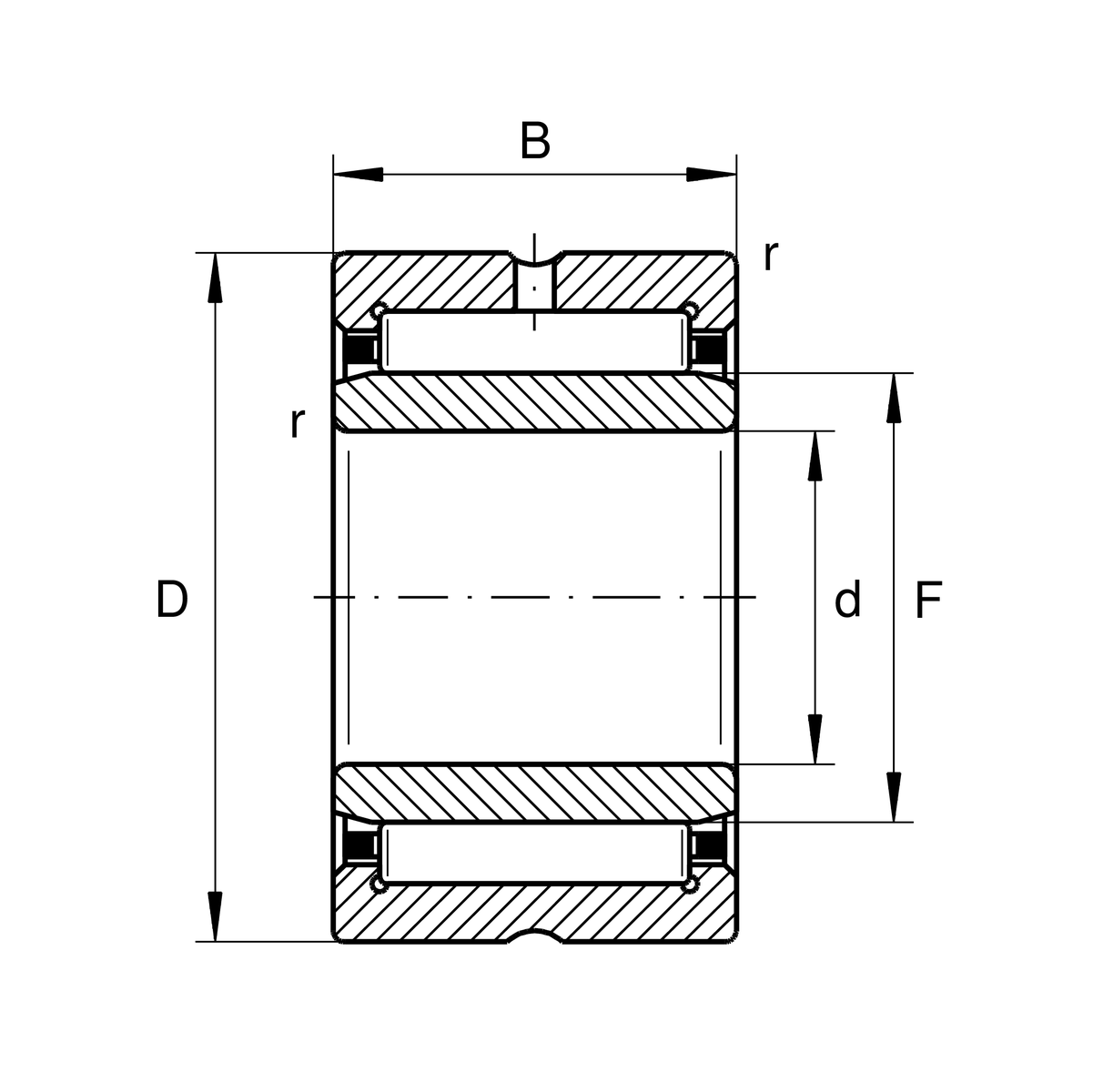

Main Dimensions & Performance Data

d

55 mm

D

85 mm

B

28 mm

Cr

75000 N

Cor

108000 N

Cur

19400 N

Reference speed

4000 rpm

Limiting speed

6900 rpm

Mounting dimensions

rmin

1.1 mm Minimum chamfer size

F

65 mm Inner race diameter

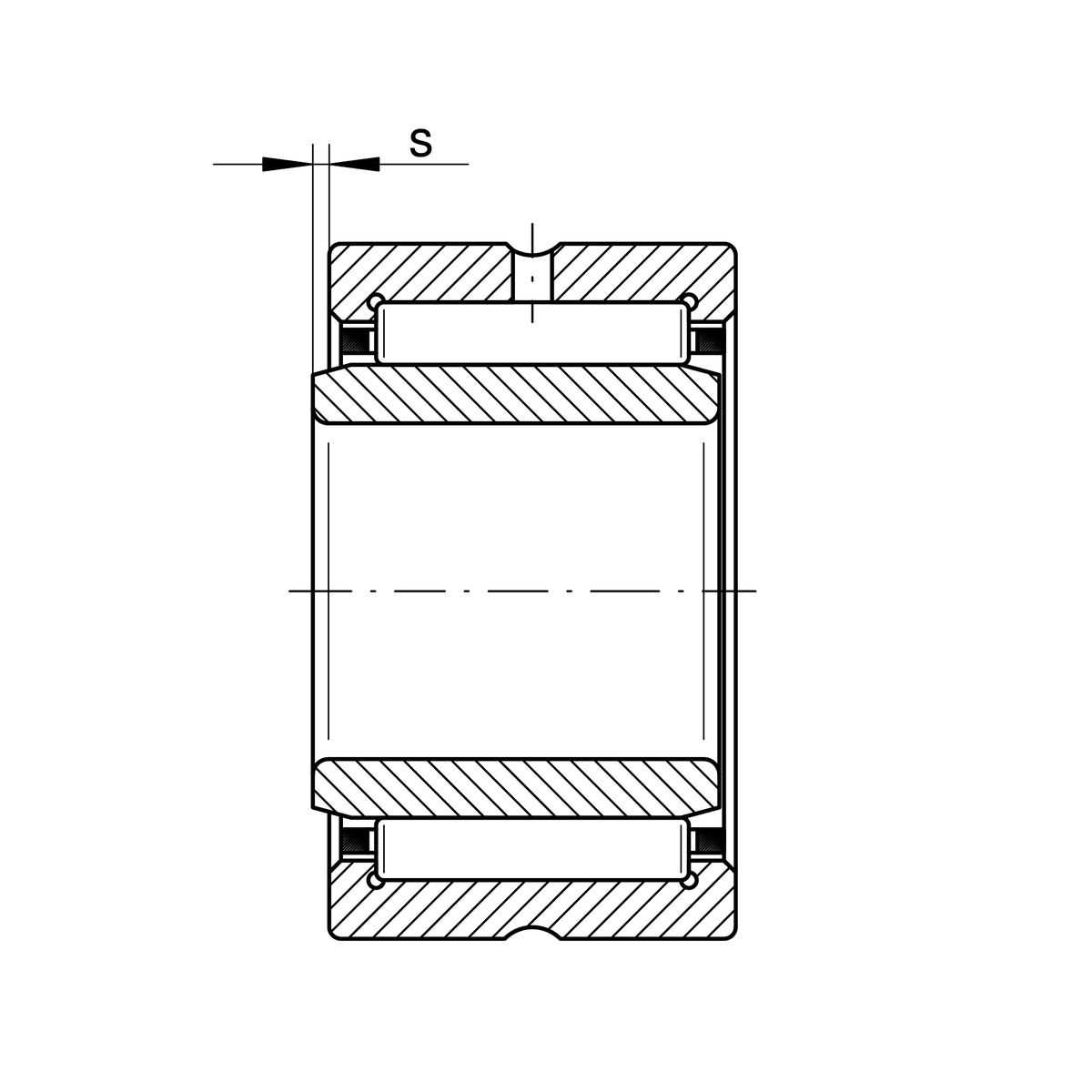

s

2 mm Axial displacement

Temperature range

Tmin

-30 °C Minimum operating temperature

Tmax

120 °C Maximum operating temperature
