13636661571
d |
30 mm |
D |
75 mm |
B |
56 mm |
Ca |
59000 N |
Coa |
108000 N |
Cua |
N |
Reference speed |
1600 rpm |
Limiting speed |
3500 rpm |
da min |
47 mm | Shaft shoulder minimum diameter |
d1 |
51 mm | Inner ring rib diameter |
D1 |
110 mm | Flange diameter |
da max |
64 mm | Shaft shoulder maximum diameter |
r min |
0.3 mm | Minimum chamfer size |
r1 min |
0.6 mm | Minimum chamfer size |
|
|
M8 | Bolt size |
n |
8 | Number of screws |
B1 |
35 mm | Flange thickness |
d2 |
8.8 mm | Fixed hole diameter |

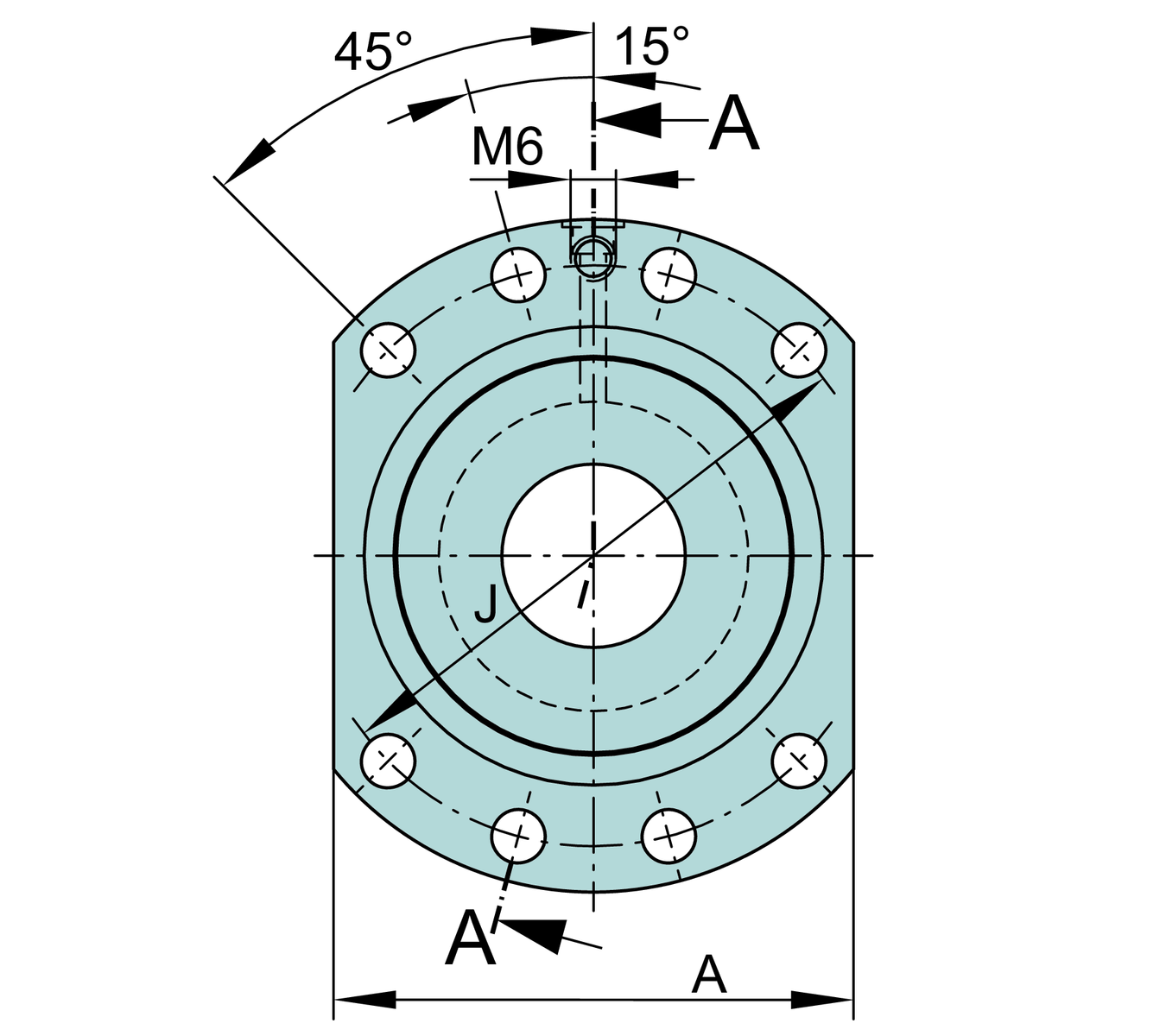

J |
95 mm | Pitch diameter (hole) |
A |
85 mm | Flange width |
T min |
-30 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
