13636661571

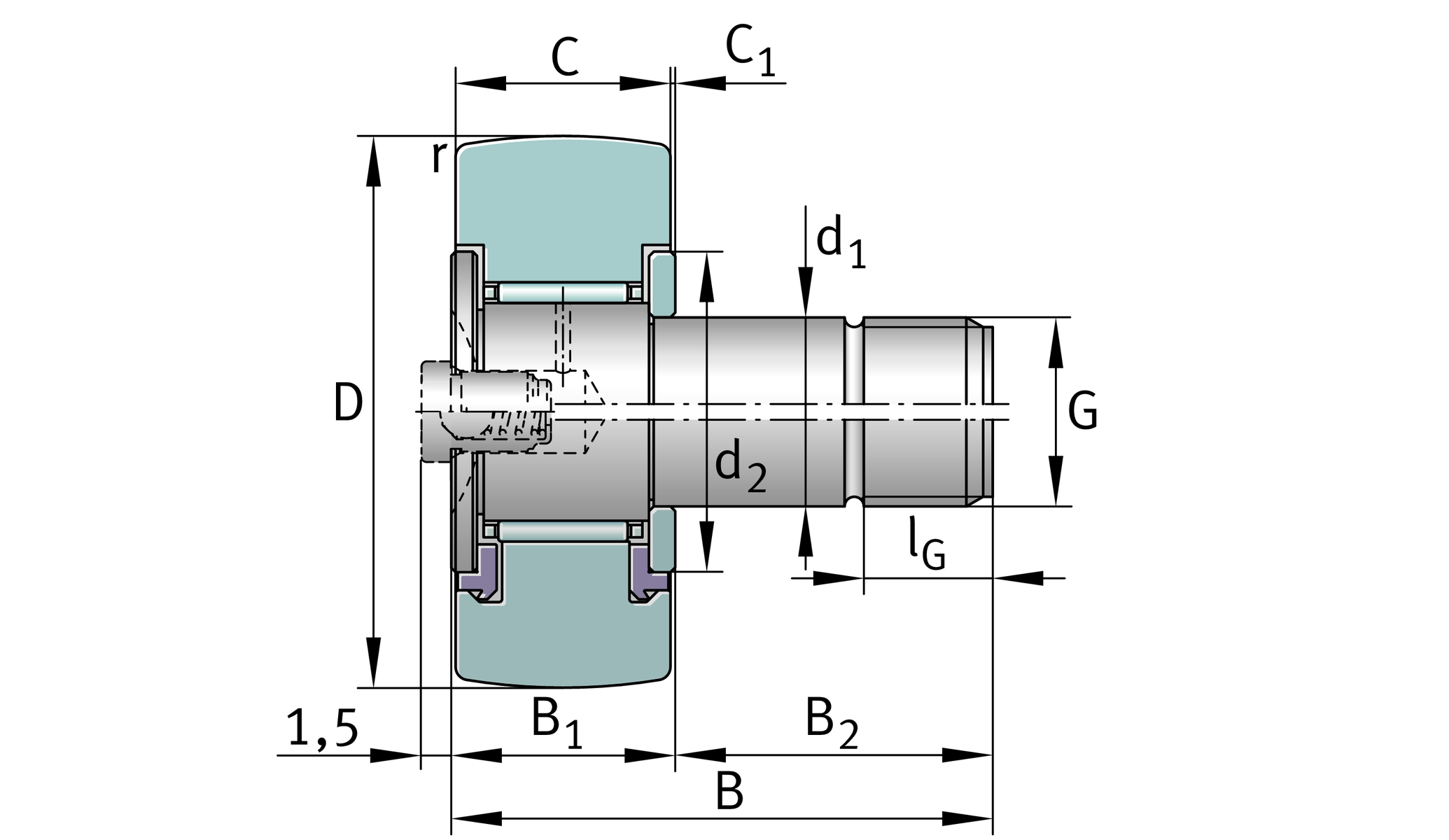

D |
16 mm |
B |
28 mm |
Cr |
3200 N |
Cor |
3450 N |
Cur |
465 N |
Reference speed |
14000 rpm |
d |
15 mm | 内径 |
B |
14 mm | Inner ring width |
D1min |
26 mm | Minimum Installation dimension |
rmin |
0.6 mm | Minimum chamfer size |
r1min |
0.3 mm | Minimum chamfer size |
R |
500 mm | Contour modification radius of outer ring outer surface |
