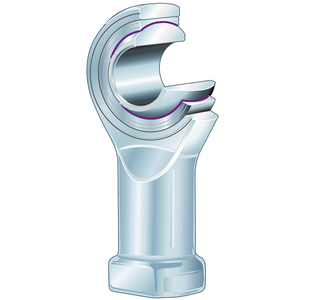

13636661571
d |
16 mm |
D |
32 mm |
B |
21 mm |
Cr |
39000 N |
Cor |
19000 N |
dK |
28.5 mm | Ball diameter |
d1 |
19.4 mm | Inner ring outer flange diameter |
d2 |
43 mm | Outer ring diameter |
d3 |
M16x1,5 | thread size |
d4 |
22 mm | Shank diameter |
h1 |
64 mm | Internal thread shank length |
C1 |
15 mm | Rod end width |
α |
15 ° | inclination |
l3 |
24 mm | Internal thread length |
l4 |
85.5 mm | Overall length of female thread head |
l5 |
8 mm | Rod end shank length |
l7 |
21 mm | Drilling distance with /axis start |
d5 |
27 mm | Shank diameter，big |
W |
22 mm | Opening width |
r 1smin |
0.3 mm | margin |
Gr |
0,005 - 0,045 mm | Radial clearance |
dOT |
0.018 mm | Bearing inner diameter, upper deviation |
dUT |
0 mm | Bearing inner diameter, lower deviation |
dT |
H7 mm | Bearing bore diameter, tolerance |
BOT |
0.012 mm | Inner ring width, upper deviation |
BUT |
0 mm | Inner ring width, lower deviation |
T min |
-10 °C | Minimum operating temperature |
T max |
80 °C | Maximum operating temperature |
