13636661571

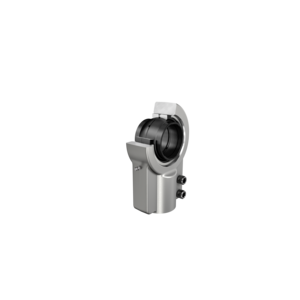

d |
25 mm |
D |
42 mm |
B |
25 mm |
Cr |
48300 N |
Cor |
69900 N |
dK |
35.5 mm | Ball diameter |
d1 |
30.5 mm | Inner ring outer flange diameter |
d2 |
58 mm | Outer ring diameter |
d3 |
M20x1,5 | thread size |
d4 |
30 mm | Shank diameter |
h1 |
65 mm | Internal thread shank length |
C1 |
21 mm | Rod end width |
α |
4 ° | inclination |
l3 |
29 mm | Internal thread length |
l4 |
94 mm | Overall length of female thread head |
l7 |
27 mm | Drilling distance with /axis start |
d7 |
M8x20 mm | weld Shank diameter |
d5 |
54 mm | Shank diameter，big |
C2 |
17 mm | width |
r 1smin |
0.6 mm | margin |
Gr |
0,037 - 0,1 mm | Radial clearance |
FZ |
32,000 N | Cylinder force |
MA |
32 Nm | Tightening torque |
dOT |
0.021 mm | Bearing inner diameter, upper deviation |
dT |
H7 mm | Bearing bore diameter, tolerance |
dUT |
0 mm | Bearing inner diameter, lower deviation |
BOT |
0 mm | Inner ring width, upper deviation |
BUT |
-0.21 mm | Inner ring width, lower deviation |
T min |
-60 °C | Minimum operating temperature |
T max |
200 °C | Maximum operating temperature |
