13636661571

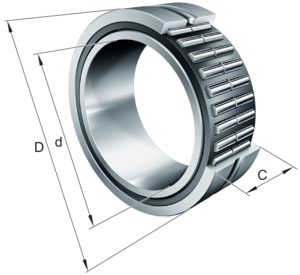

d |
55 mm |
D |
72 mm |
B |
25 mm |
Cr |
52000 N |
Cor |
92000 N |
Cur |
17400 N |
Reference speed |
4900 rpm |
Limiting speed |
7700 rpm |
F |
60 mm | Inner ring raceway diameter |
r min |
0.6 mm | Minimum chamfer size |

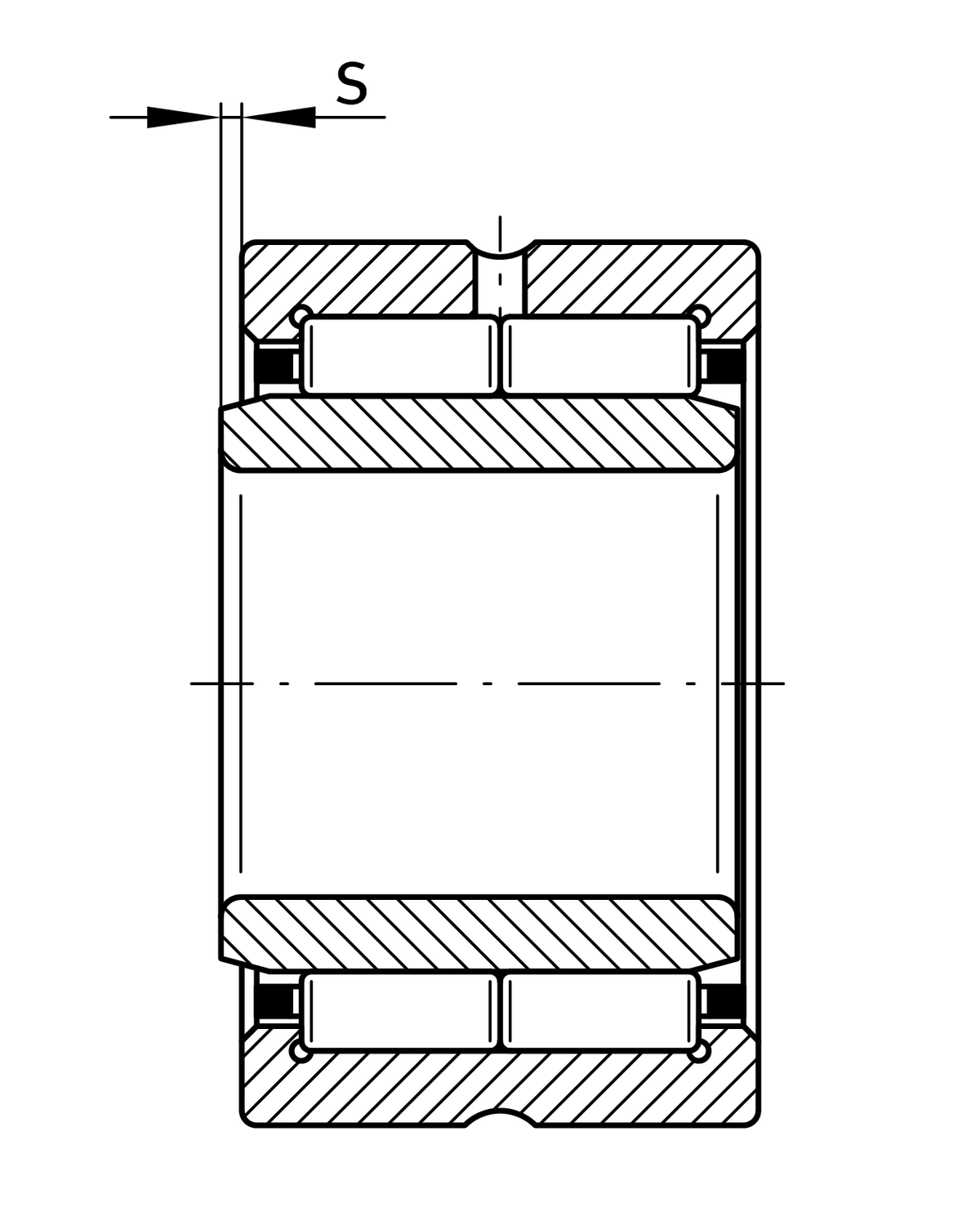

s |
1.5 mm | Axial displacement |
T min |
-20 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
