13636661571

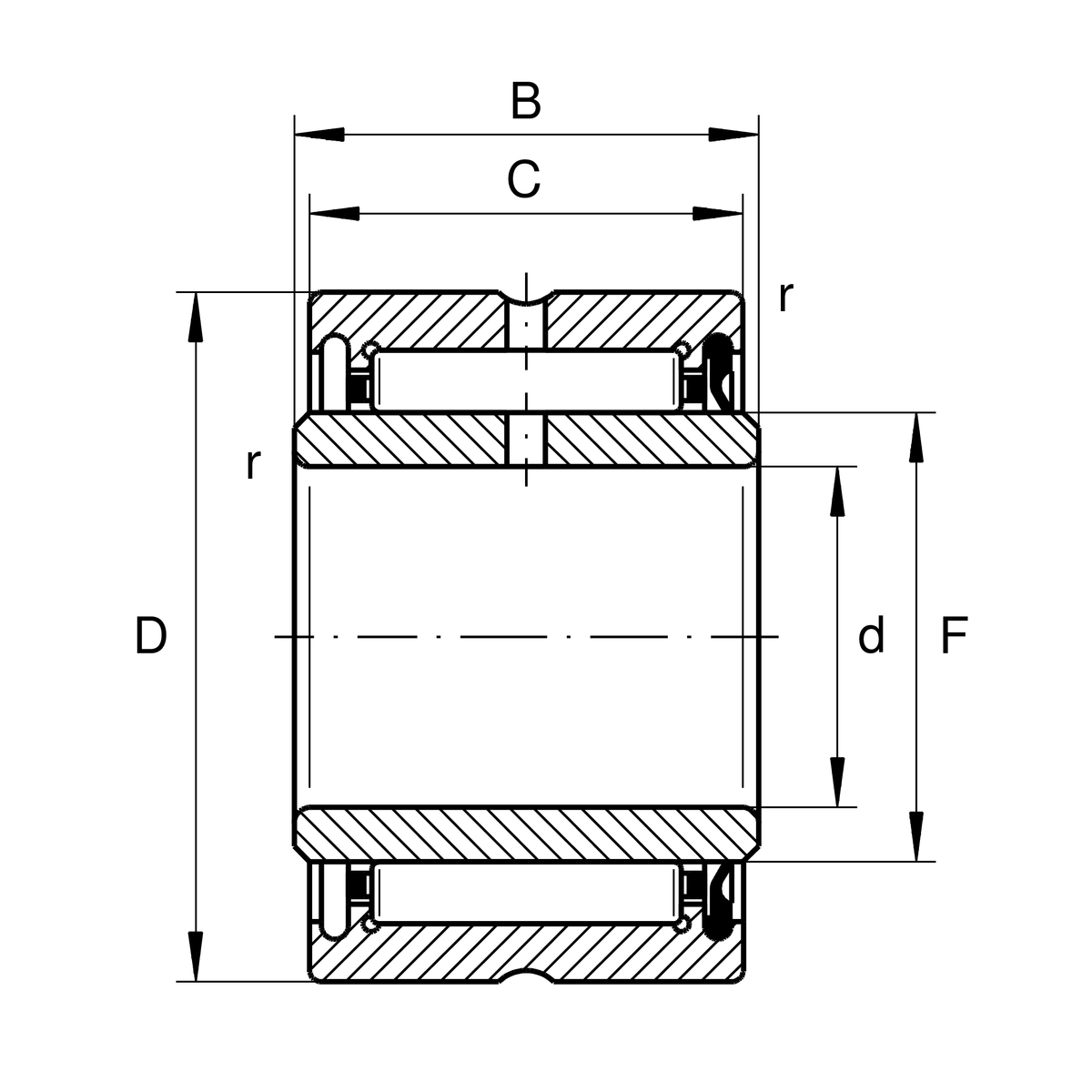

d |
15 mm |
D |
28 mm |
B |
14 mm |
Cr |
9700 N |
Cor |
10300 N |
Cur |
2070 N |
Grease lubrication speed |
12600 rpm |
F |
20 mm | Inner ring raceway diameter |
C |
13 mm | Outer ring width |
r min |
0.3 mm | Minimum chamfer size |
T min |
-20 °C | Minimum operating temperature |
T max |
100 °C | Maximum operating temperature |
