NAO6X17X10-TV-IS1-XL_Needle Roller Bearings

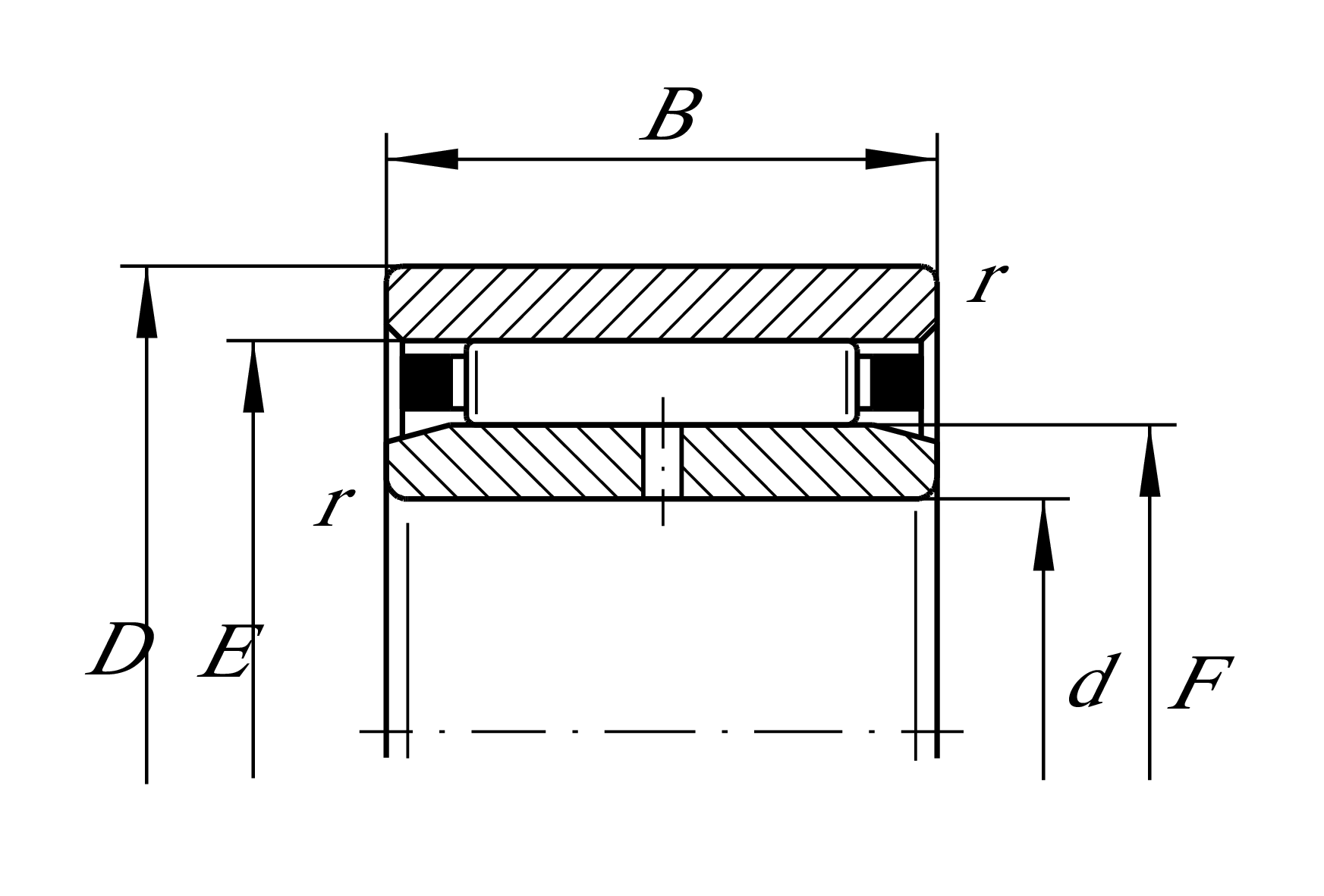

Main Dimensions & Performance Data

d

6 mm

D

17 mm

B

10 mm

Cr

5300 N

Cor

5500 N

Cur

940 N

Reference speed

23800 rpm

Limiting speed

29500 rpm

Mounting dimensions

da

9.7 mm Installation size

F

10 mm Inner ring raceway diameter

E

13 mm Outer ring raceway diameter

Db

10.3 mm Axial Guide NK / Housing Shoulder Diameter

r min

0.3 mm Minimum chamfer size

db

12.7 mm Axial guide NK/shaft shoulder diameter

s

0.5 mm Axial displacement

Da

13.3 mm Outer ring shoulder diameter

ra max

0.3 mm Maximum pocket radius

Temperature range

T min

-20 °C Minimum operating temperature

T max

120 °C Maximum operating temperature
