13636661571

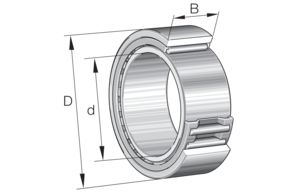

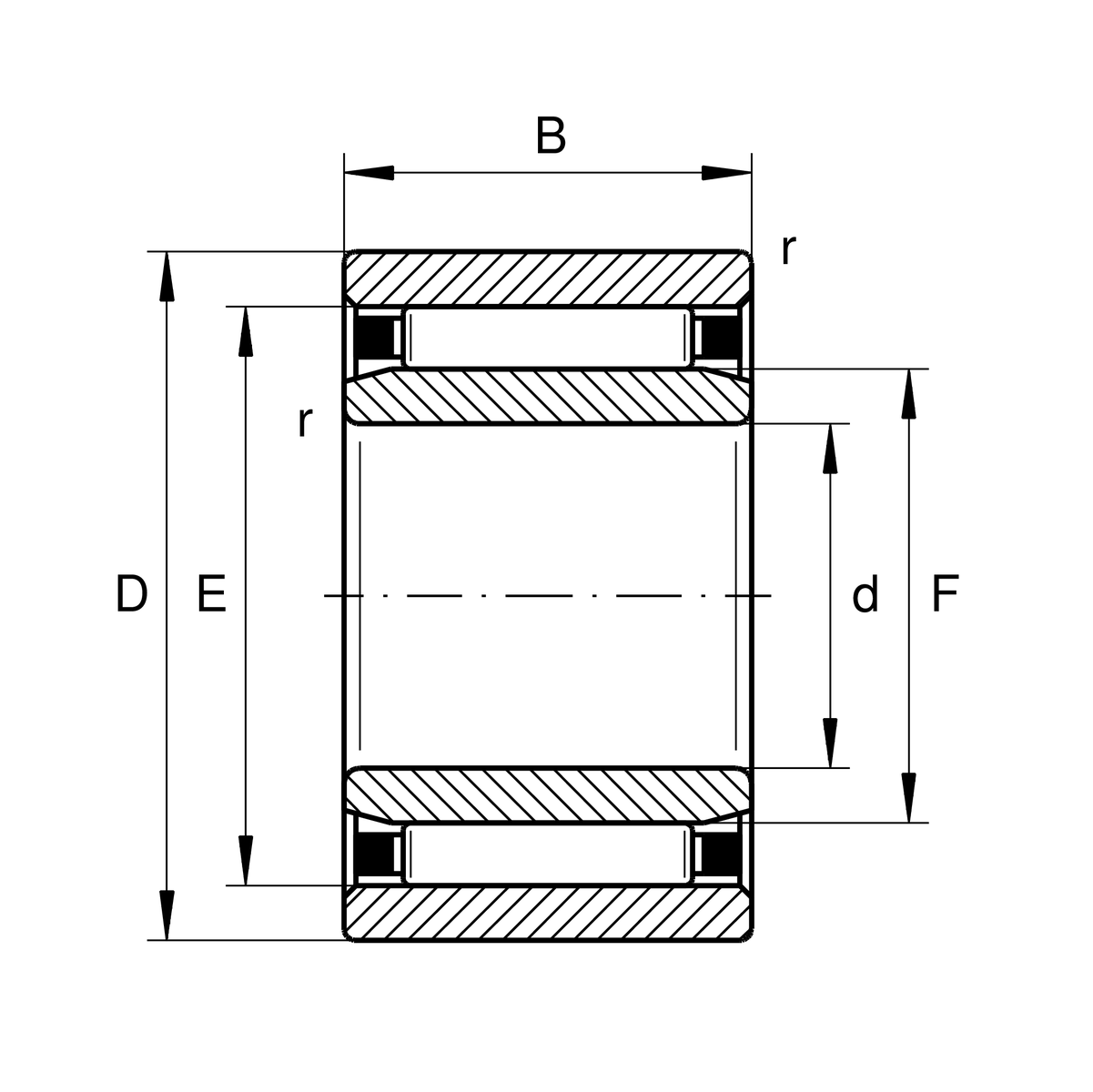

d |
25 mm |
D |
40 mm |
B |
17 mm |
Cr |
22100 N |
Cor |
34000 N |
Cur |
5400 N |
Reference speed |
8100 rpm |
Limiting speed |
15100 rpm |

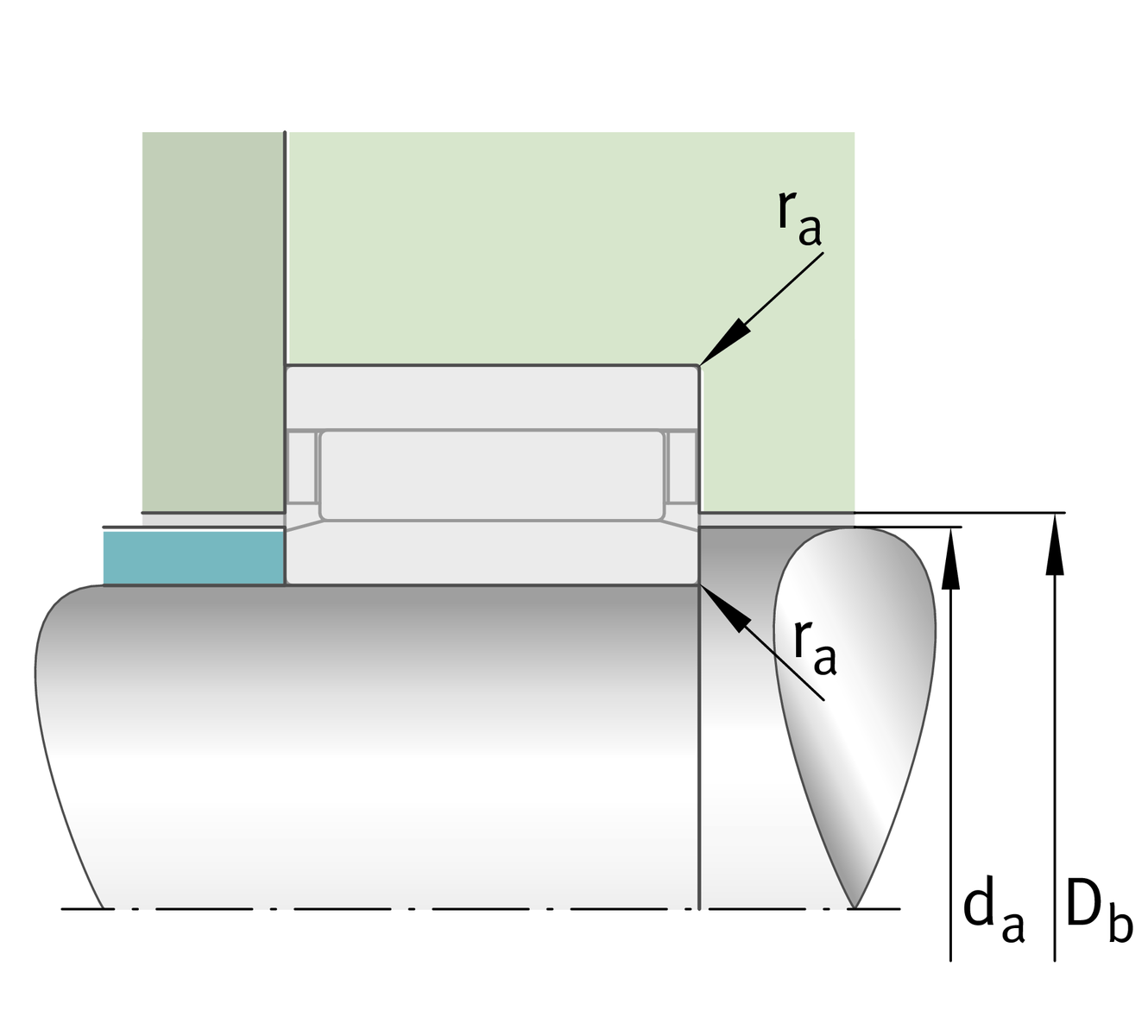

da |
29.5 mm | Installation size |
F |
30 mm | Inner ring raceway diameter |
E |
35 mm | Outer ring raceway diameter |
Db |
30.6 mm | Axial Guide NK / Housing Shoulder Diameter |
r min |
0.3 mm | Minimum chamfer size |
db |
34.4 mm | Axial guide NK/shaft shoulder diameter |
s |
0.8 mm | Axial displacement |
Da |
35.5 mm | Outer ring shoulder diameter |
ra max |
0.3 mm | Maximum pocket radius |
T min |
-30 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
