13636661571

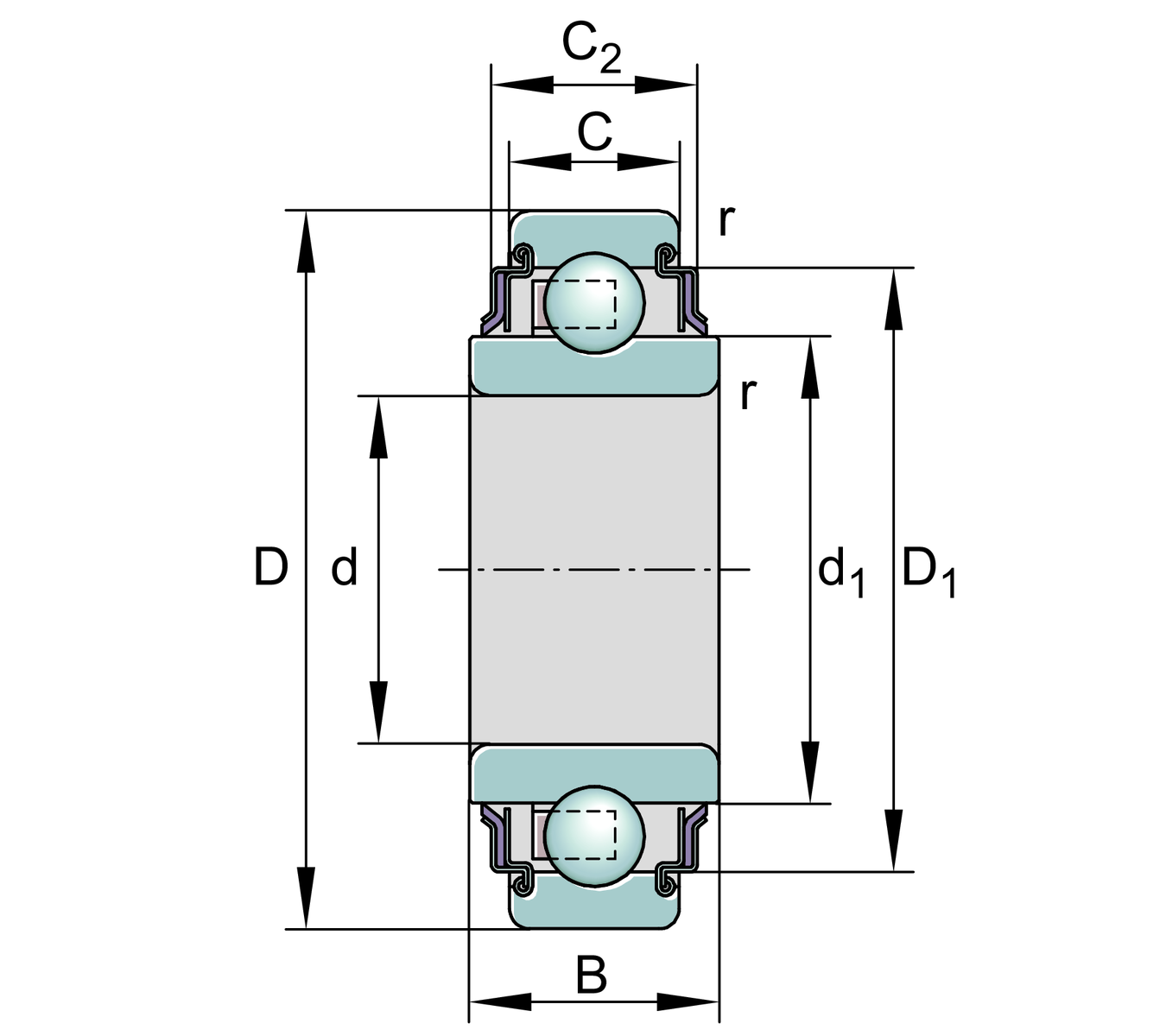

d |
31.75 mm |
D |
62 mm |
B |
38.1 mm |
Cr |
19500 N |
Cor |
11300 N |
Cur |
520 N |
C |
14 mm | Outer ring width |
C2 |
16.6 mm | Total sealing width |
S |
17.1 mm | Raceway distance |
d1 |
27.6 mm | Inner ring flange diameter |
D1 |
37.4 mm | Seal outer diameter |
Ca |
4 mm | Distance to lubrication hole |
d3 |
33 mm | Outer diameter of eccentric sleeve / locknut |
W |
3 | Plane width |
f0 |
13.1 | Calculation coefficient |
