13636661571

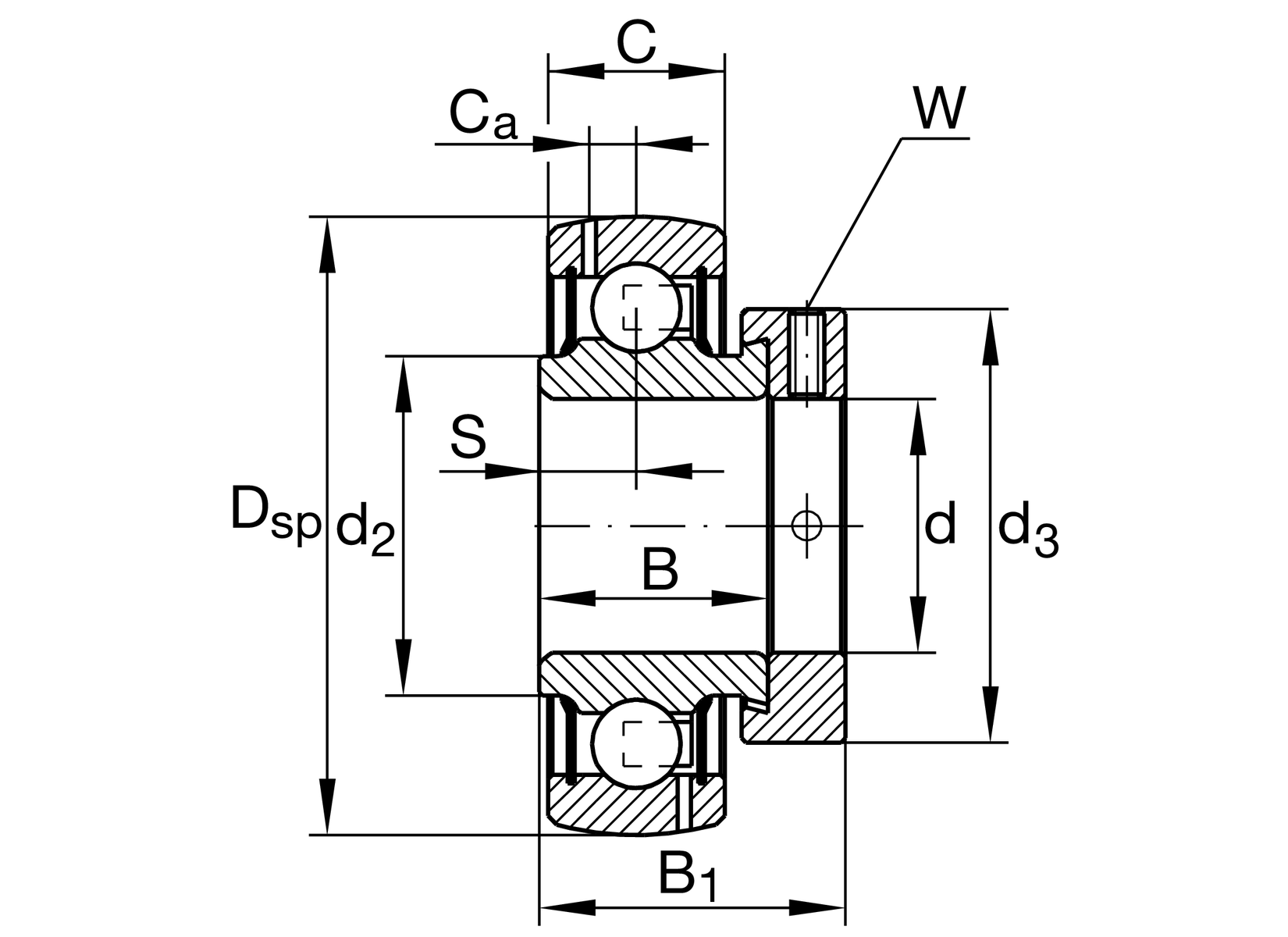

d |
31.75 mm |
D |
72 mm |
B |
25.4 mm |
B1 |
39 mm |
Cr |
25500 N |
Cor |
15300 N |
Cur |
800 N |
C |
19 mm | Outer ring width |
S |
9.5 mm | Raceway distance |
Ca |
5.8 mm | Distance to lubrication hole |
b |
5 mm | Width of positioning groove |
t |
5 mm | 紧定套Height of positioning groove |
d3 |
52 mm | Outer diameter of eccentric sleeve / locknut |
f0 |
13.9 | Calculation coefficient |
