RCSMB15/65-XL-FA106_Insert Ball Bearing

Main Dimensions & Performance Data

d

15 mm

D

65.1 mm

B1

28.6 mm

Cr

10100 N

Cor

4750 N

Cur

248 N

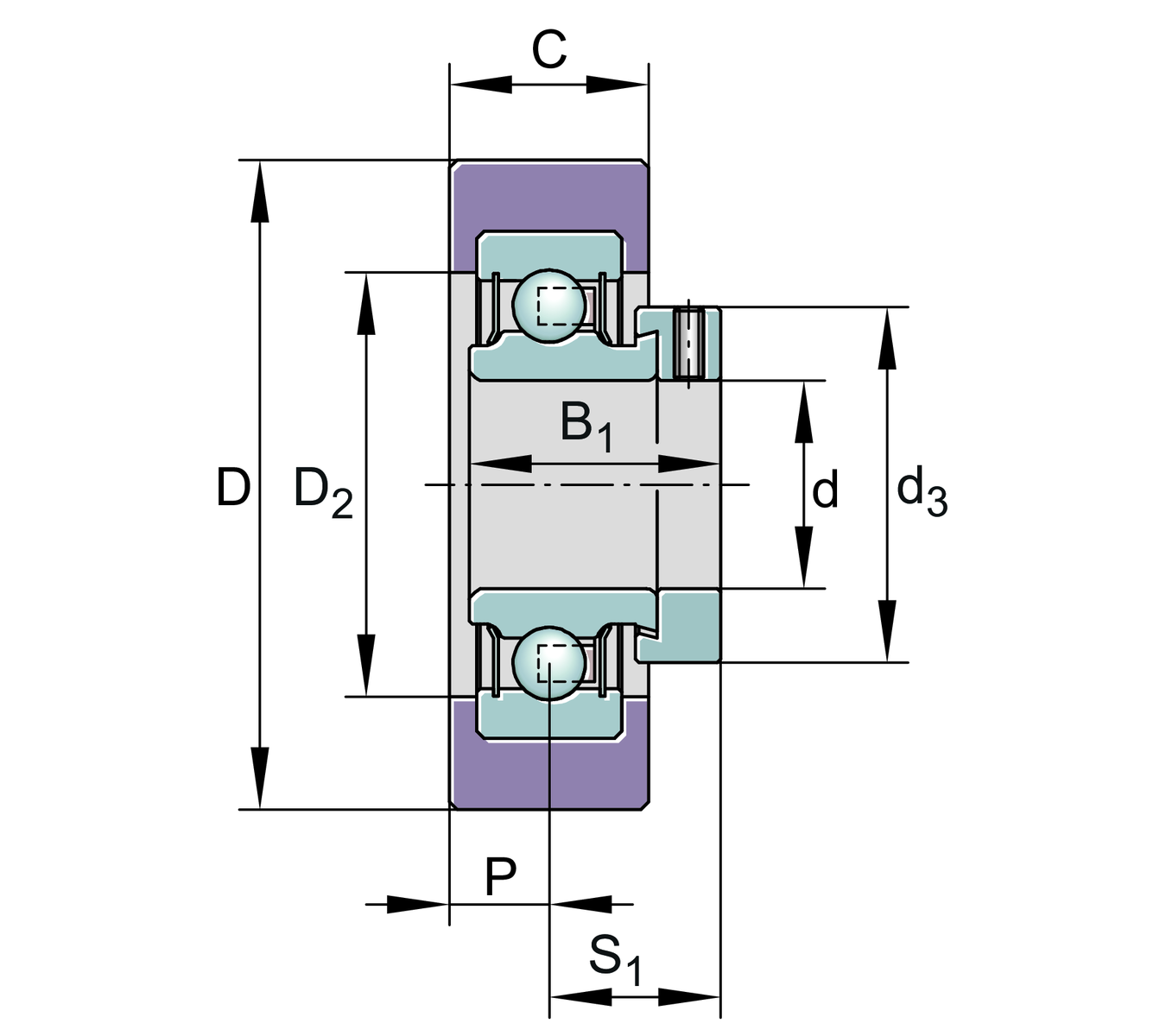

Mounting dimensions

C

12 mm Outer ring width

S

6.5 mm Raceway distance

d2

23 mm SealInner ring flange diameter

d3

28.4 mm Outer diameter of eccentric sleeve / locknut

W

3 mm Plane width

Calculation coefficient

f0

13 Calculation coefficient
