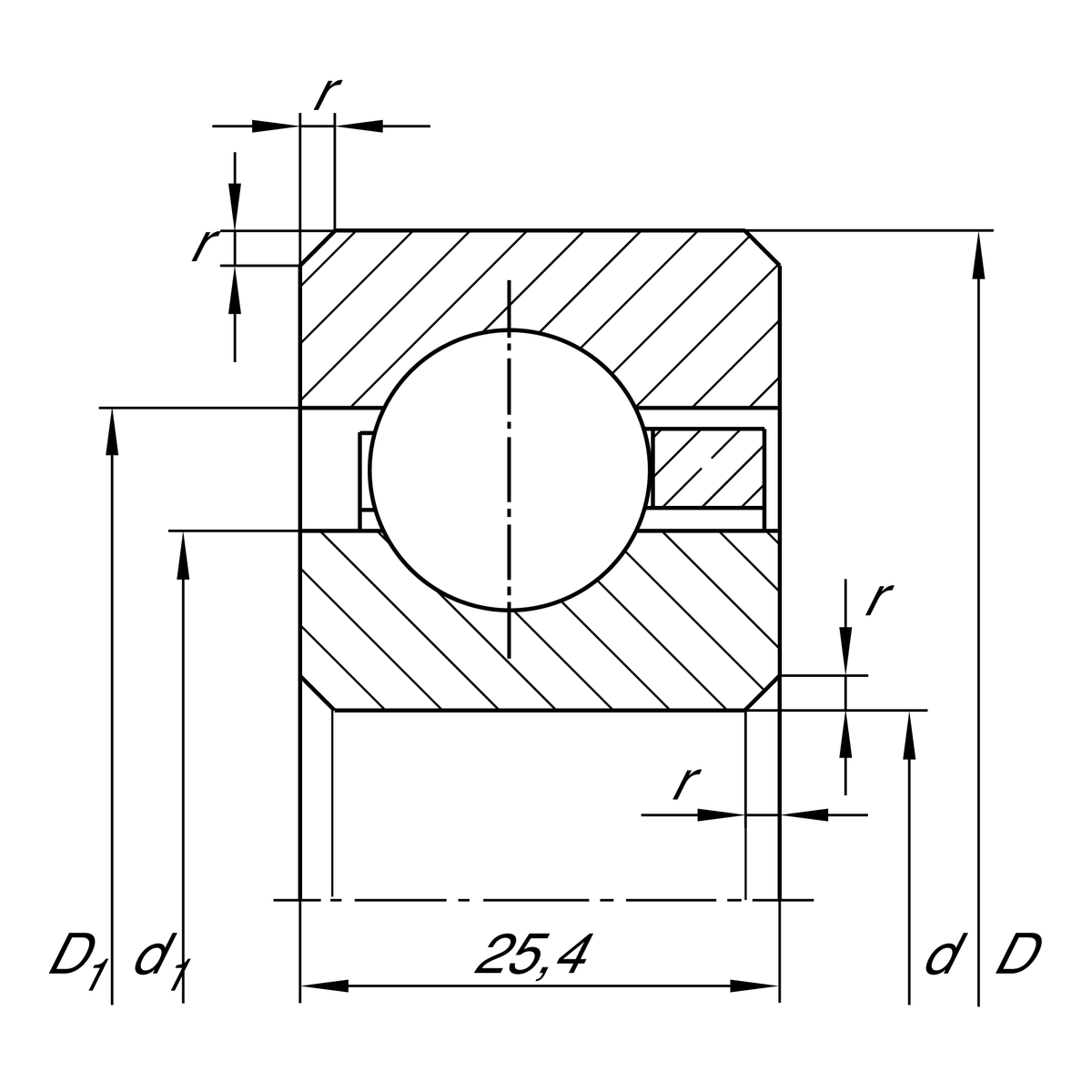

d |
635 mm |
d(Inch) |
635 Inch |
D |
685.8 mm |
B |
25.4 mm |
Cr |
68000 N |
Cor |
174000 N |
Limiting speed |
780 rpm |
r min |
2 mm | Minimum chamfer dimension , |
d 1 |
653.9 mm | Shoulder diameter inner ring |
D 1 |
667 mm | Shoulder diameter outer ring |
T min |
-30 °C | Operating temperature min. |
T max |
120 °C | Operating temperature max. |
