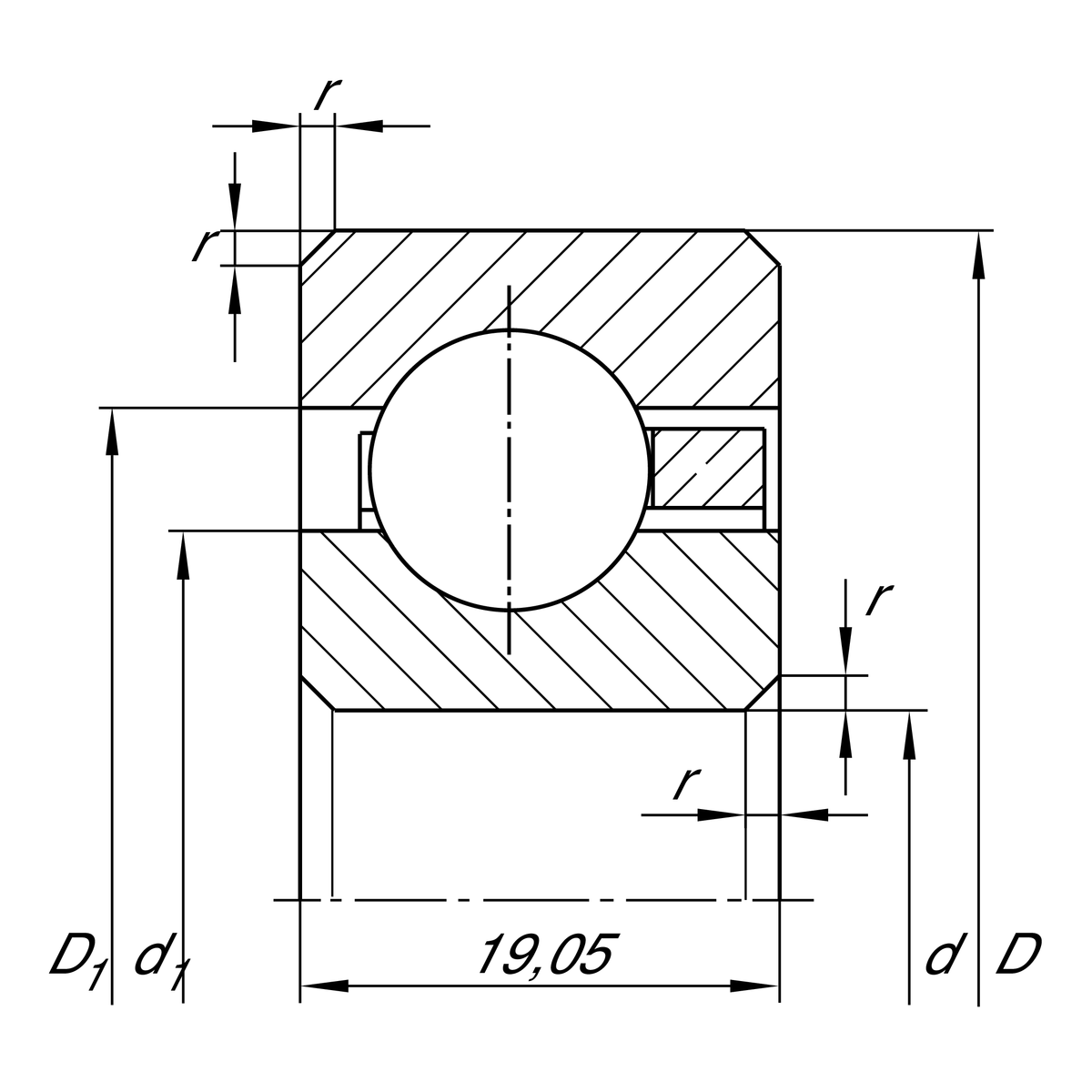

d |
406.4 mm |
d(Inch) |
406.4 Inch |
D |
444.5 mm |
B |
19.05 mm |
Cr |
36000 N |
Cor |
76000 N |
Limiting speed |
1240 rpm |
r min |
2 mm | Minimum chamfer dimension , |
d 1 |
420.5 mm | Shoulder diameter inner ring |
D 1 |
430.4 mm | Shoulder diameter outer ring |
T min |
-30 °C | Operating temperature min. |
T max |
120 °C | Operating temperature max. |
