CSCC047_Deep groove ball bearing

Main Dimensions & Performance Data

d

120.65 mm

d(Inch)

120.65 Inch

D

139.7 mm

B

9.525 mm

Cr

8300 N

Cor

9700 N

Limiting speed

4350 rpm

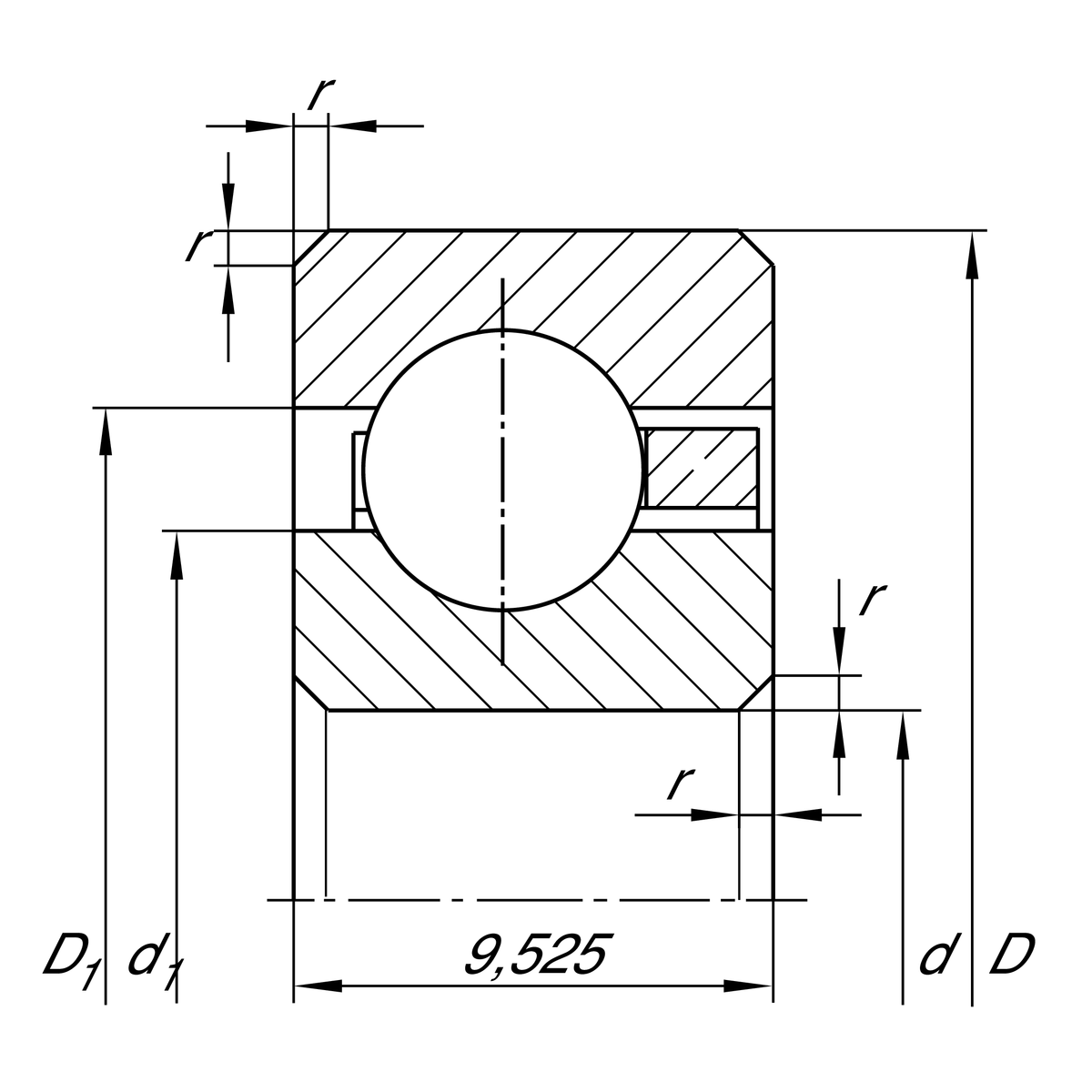

Mounting dimensions

r min

1 mm Minimum chamfer dimension ,

d 1

127.7 mm Shoulder diameter inner ring

D 1

132.7 mm Shoulder diameter outer ring

Temperature range

T min

-30 °C Operating temperature min.

T max

120 °C Operating temperature max.
