13636661571

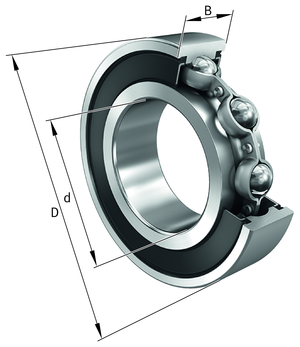

d |
10 mm |
D |
26 mm |
B |
8 mm |
Cr |
3890 N |
Cor |
1570 N |
Cur |
125 N |
Limiting speed |
11000 rpm |
d a min |
12 mm | Minimum diameter of shaft shoulder |
r min |
0.3 mm | Minimum chamfer size |
D 1 |
21.3 mm | Inner ring flange diameter |
D a max |
24 mm | Maximum diameter of bearing block shoulder |
r a max |
0.3 mm | Maximum cavity radius |
D 2 |
22.38 mm | Inner diameter from recess to outer ring |
d 1 |
14.5 mm | Shoulder diameter inner ring |
d2 |
13.9 mm | Thrust washer diameter |
T min |
-30 °C | Minimum operating temperature |
T max |
100 °C | Maximum operating temperature |
f 0 |
9.9 | Calculation coefficient |
