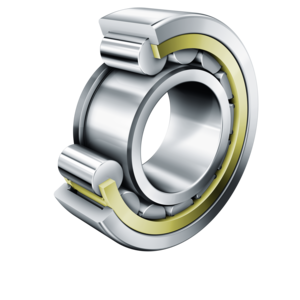

d |
30 mm |
D |
90 mm |
B |
23 mm |
Cr |
84000 N |
Cor |
65000 N |
Cur |
11100 N |
Reference speed |
8100 rpm |
Limiting speed |
15500 rpm |
damin |
41 | Minimum diameter of shaft shoulder |
rmin |
1.5 | Minimum chamfer size |
damax |
44 | Maximum diameter of shaft shoulder |
r1min |
1.5 | Minimum chamfer size |
s |
2.3 | Axial displacement |
Damax |
79 | Maximum diameter of bearing block shoulder |
E |
73 | Outer race diameter |
F |
45 | Inner race diameter |
D1min |
68.4 | Minimum shoulder diameter of outer ring |
dcmin |
52 | Minimum shaft shoulder |
d1 |
50.3 | Maximum flange diameter of inner ring |
ramax |
1.5 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
150 °C | Maximum operating temperature |
