13636661571

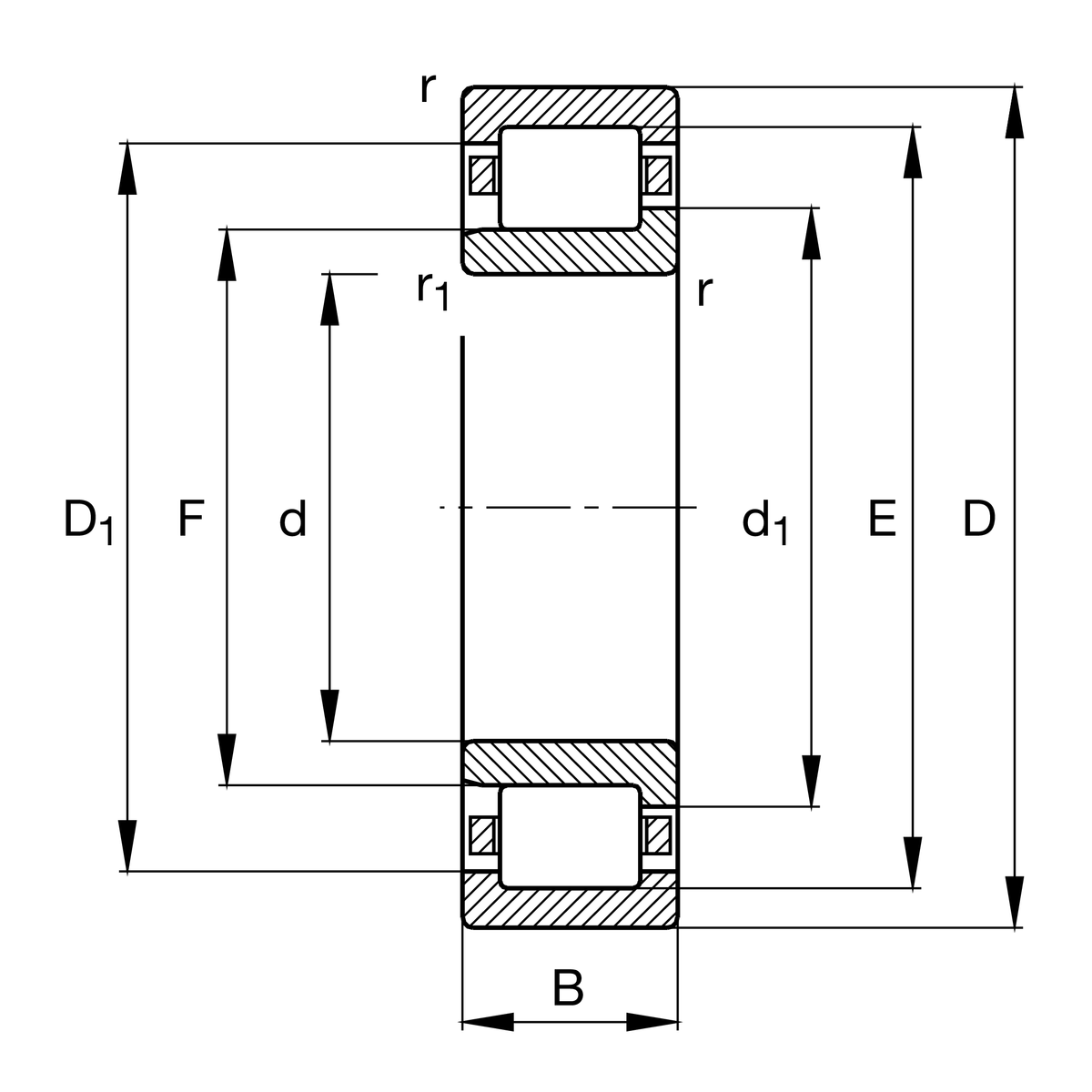

d |
30 mm |
D |
72 mm |
B |
19 mm |
Cr |
61000 N |
Cor |
48000 N |
Cur |
7800 N |
Reference speed |
8900 rpm |
Limiting speed |
18500 rpm |
damin |
37 | Minimum diameter of shaft shoulder |
rmin |
1.1 | Minimum chamfer size |
damax |
40 | Maximum diameter of shaft shoulder |
r1min |
1.1 | Minimum chamfer size |
s |
1.2 | Axial displacement |
Damax |
65 | Maximum diameter of bearing block shoulder |
E |
62.5 | Outer race diameter |
F |
40.5 | Inner race diameter |
D1min |
59.2 | Minimum shoulder diameter of outer ring |
dcmin |
48 | Minimum shaft shoulder |
d1 |
44.95 | Maximum flange diameter of inner ring |
ramax |
1 | Maximum cavity radius |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
150 °C | Maximum operating temperature |
