13636661571

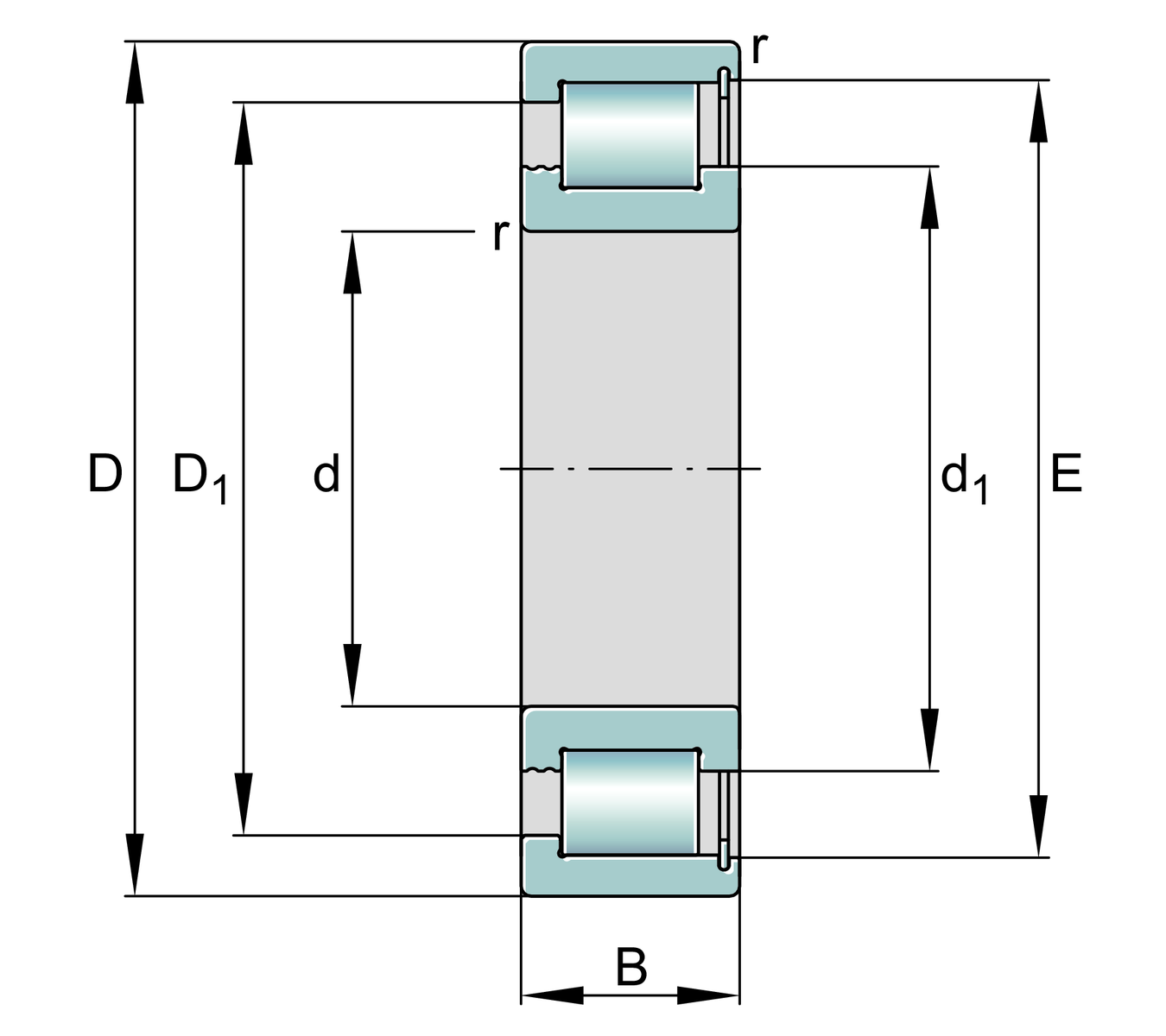

d |
360 mm |
D |
480 mm |
B |
72 mm |
Cr |
1280000 N |
Cor |
2600000 N |
Cur |
280000 N |
Reference speed |
430 rpm |
Limiting speed |
730 rpm |

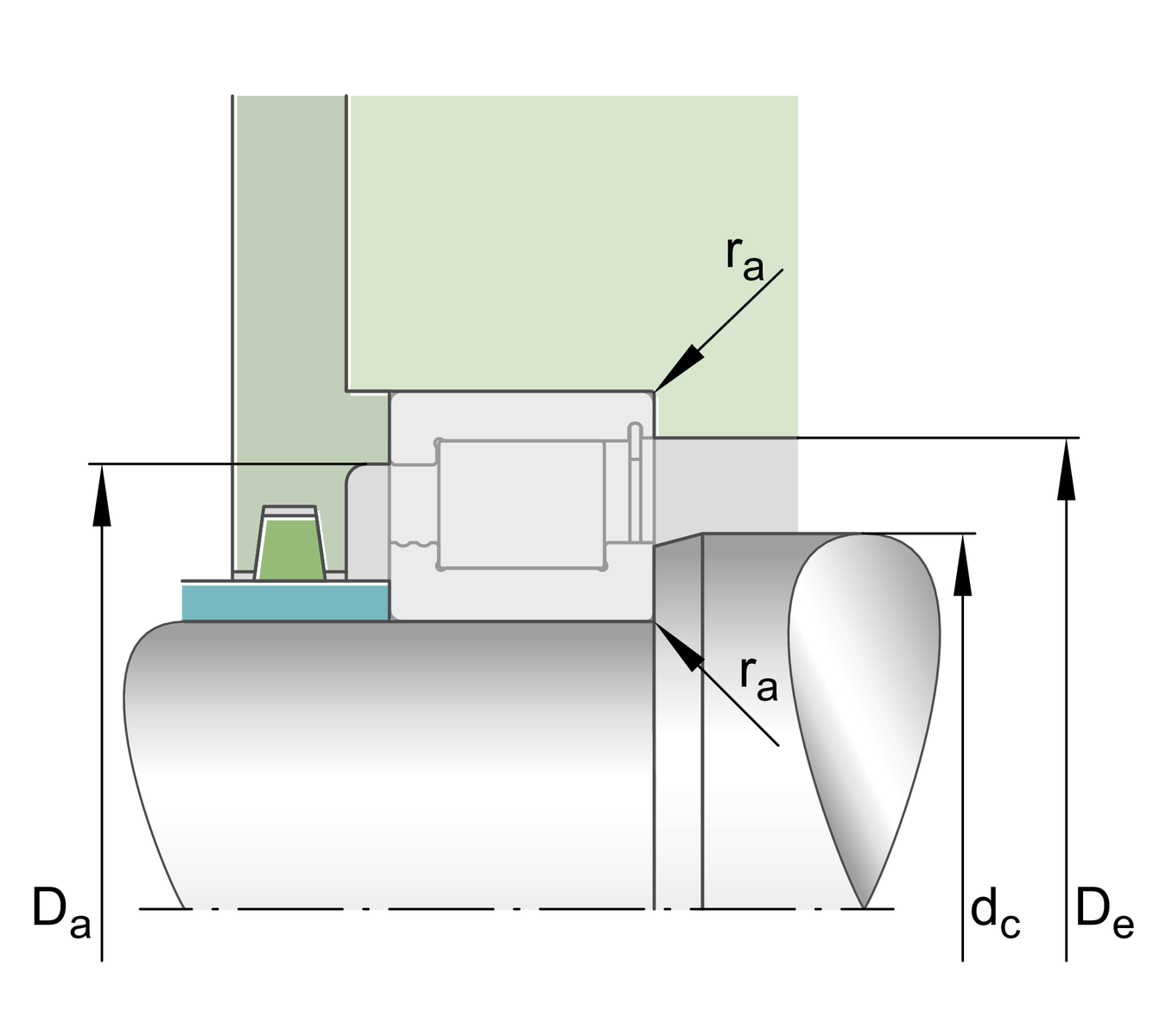

damin |
399.5 | Minimum diameter of shaft shoulder |
rmin |
3 | Minimum chamfer size |
s |
5 | Axial displacement |
dcmin |
399.5 | Minimum shaft shoulder |
Damax |
438.5 | Maximum diameter of bearing block shoulder |
d1 |
399.5 | Maximum flange diameter of inner ring |
Demin |
450.5 | Minimum diameter of bearing pedestal shoulder |
ramax |
3 | Maximum cavity radius |
D1min |
438.6 | Minimum shoulder diameter of outer ring |
E |
450.6 | Outer race diameter |
Tmin |
-30 °C | Minimum operating temperature |
Tmax |
120 °C | Maximum operating temperature |
